3 questions

Support Basics & Interface
1

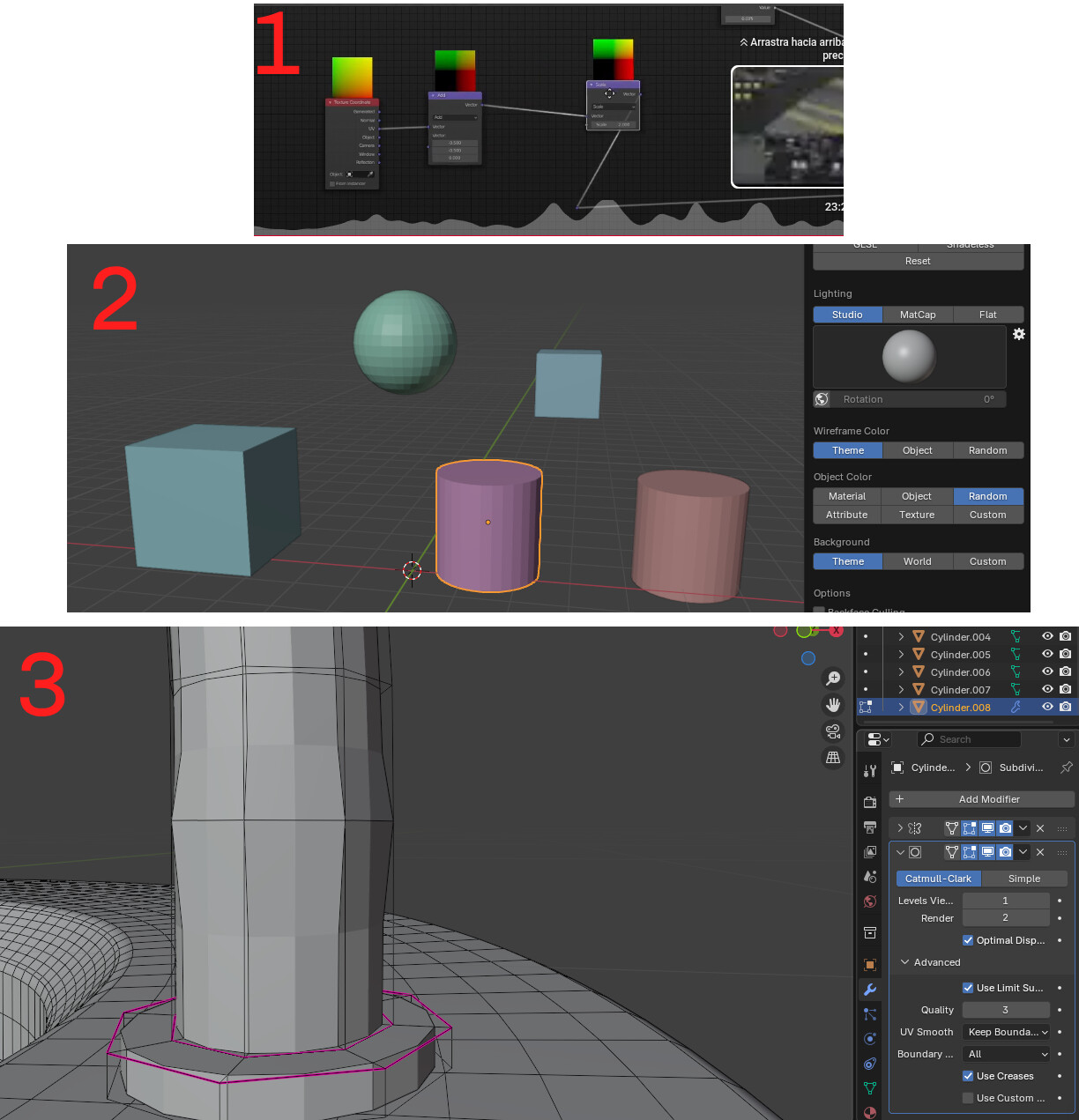

I have several questions, along with screenshots.

  1. What do I need to do to make the shader editor look like this?
  2. Can I customize the Object Color with any colors I want?
  3. How can I fix this?
    Proyecto nuevo
    Proyecto nuevo1224Ă—1271 217 KB
2

1- From a Google search, this seems to be possible only with a paid addon.
https://superhivemarket.com/products/node-preview?ref=758

2- Instead of using “random” color, switch to “material” and set the viewport color of your choice in the material settings. Not only you can choose the color, but also viewport roughness and metallic for each material.
viewport_color

3- There must be a modeling mistake in there. Try selecting everything and do a “merge by distance”. If there are disconnected edges or overlapping geometry, this will fix it. It could also be because of a face hidden inside the model, in which case you need to delete it. It could also be a problem with normals direction, so try selecting everything and recalculate the normals (shift+n).

3

image963Ă—741 86.9 KB

The functionality of 1 is limitedly supported in blender 5.0.
The function activation process is required to use that function.
※ This feature can be removed at any time.

4

You’ve already received help, but for the future : Please post a thread for each individual question, and name them accordingly. The post title should reflect your issue as succintly as possible, and will serve as reference to anyone who is having a similar issue and looks it up on the forum search. Thank you

5
  1. I thought it would be a Blender add-on.
  2. I tried it. It seems I have to create a new material for each object.
  3. Yes, it was the normal direction.

Thank you very much. You helped me a lot.

6

So, it’s also an experimental feature in version 5.0.
Thank you.

7

I understand

8
  1. You can also just change the display color.

Not necessary in this case to add a material.

image1359Ă—904 152 KB

9

It has been an experimental feature for quite some time.
It is not as good as the addon, in your screen shot the preview of the mapping node is showing the UV cords which is what you would expect as it is the output they are using.
The Blender experimental version only shows generated cords no matter which output you use.

1
1702Ă—534 20.5 KB

To see the UV’s I have to put in a math node (that does nothing - add 0).

This happens with many nodes in the experimental version, it only shows one of the outputs without taking into account the output you are using.

For example

The voronoi should be showing the distance output (the one I am using) not the colour output.

2
2921Ă—668 37.2 KB

To see the Distance output again you have to use an extra node that only has one output

3
31004Ă—668 43.2 KB

So the addon does a much better job than the experimental feature (which was never finished)

10

It works! Thank you very much.

11

thanks for the information
