From Blueprints to Nodes: Redefining the Architect’s Role through Procedurality
Architecture is standing at a digital crossroads. After 15 years of practicing as a traditional architect - navigating the complexities of Rhino and the parametric rigor of Grasshopper - I found myself searching for a more fluid, integrated way to translate architectural logic into digital form. This search led me to Blender and the transformative power of Geometry Nodes.
Today, I am introducing a project that represents my bridge between Parametricism and Procedurality.
The Shift: From Designing Buildings to Designing Systems
In the traditional workflow, the architect is the creator of a singular, static design. We craft a single version of a building to fit a single set of conditions. However, the future demands a shift in philosophy. My current focus lies in the role of the “Architect Developer” - a position that treats the architect as the creator of a conceptual system rather than a fixed object.
Instead of drawing a wall, we define the rules of how a wall exists .
This shift allows a design to react in real-time to geolocation, solar orientation, wind patterns, and terrain. This isn’t just about automation; it’s about creating a “living” architectural logic that can test millions of variations for optimization - a task impossible for the human hand alone.
The Project: A Procedural 1970s Administrative Archetype

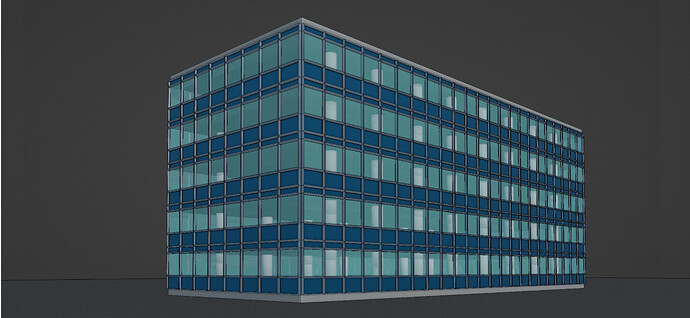

My latest tool is a procedural generator for a classic 1970s administrative building. I chose this archetype because of its clear, honest structural logic: a reinforced concrete skeleton wrapped in a lightweight glass curtain wall.

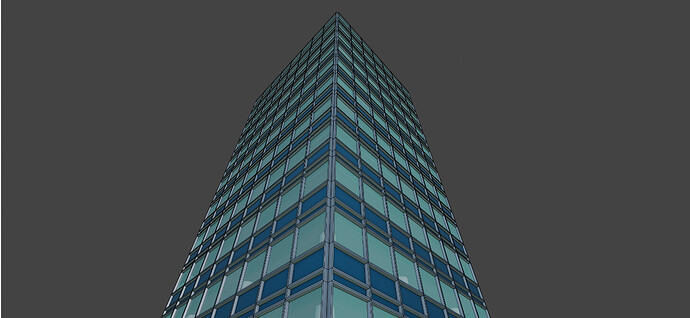

Technically, the system is driven by a simple massing primitive: the cube. Unlike typical tutorials that generate a building with many editable nodes and fixed, predefined modular parts, this system generates procedurally on top of an input object. By manipulating the basic volume’s length, height, and depth in real-time, the Geometry Nodes setup instantly regenerates the entire structure. It ensures that every column, floor slab, and sunshade maintains its structural, architectural, and logical integrity. This leads to clearly faster and more intuitive results for sketching buildings, especially when combining volumes with each other, which allows for a wide range of shape combinations.
While my previous work often pushed toward high-tech, experimental, and organic utopias, this project is an intentional return to “the beginning.” It applies cutting-edge procedural principles to a familiar, classic form. It is a step back to the basics of construction logic, yet a massive step forward in how we control that logic.
Inside the Nodes: A Technical Deep-Dive
The goal of this tool was to translate complex architectural rules into a clean, understandable node graph. I engineered this setup with a commitment to radical simplicity: zero chaos and the absolute minimum number of nested groups. The entire graph is clean, structured, and instantly readable at first glance.
By exploring the script, you can master several fundamental procedural techniques :
- **Real-time Volumetric Control:**Learn how to drive a complex system using a simple cube as the “master controller,” where every scale change triggers a logical recalculation of the entire structure.
- **Selection Logic:**Precise control over segment selection for material application, including advanced selection methods based on spatial position (XYZ) and surface normals.
- **Iterative Patterning:**The script demonstrates how to use “N-th element” logic to create rhythm and variation across a facade—mimicking the way real architectural elements like mullions or louvers are spaced.
- Generative Structural Hierarchy: Every architectural component is mapped procedurally from the top down. The script demonstrates how a master logic branches out into sub-systems, allowing you to reverse-engineer a self-contained construction sequence where columns, slabs, and framing logically spawn from a single source.
Built for Extensibility
This model serves as a clean, foundational playing field. I intentionally capped the feature set to ensure the node graph remains highly readable and completely uncluttered for education and adaptation. However, the framework is engineered to be scaled. It directly encourages your own expansion—whether you choose to implement roof-mounted HVAC units, advanced shading systems, or procedural edge-beveling on the primary concrete columns. Consider it an open canvas for your own architectural rules.
The Path to AI Integration
I see this procedural approach as the “missing link” for AI in architecture. When AI fully enters the design process, it will need a structured, rule-based environment to operate within.
A native procedural system provides the perfect playground. The AI can step in as the “driver” of the system, navigating through clearly defined parameters to find the most efficient, sustainable, and aesthetic outcomes at speeds that make traditional workflows obsolete .
Open Access & The Architectural Suite
Not long ago, even a simple task like selecting a specific face of a cube within Geometry Nodes felt daunting. I remember the frustration of looking for tools that combined professional architectural knowledge with procedural flexibility.
Because I want to support other architects, designers, and visualizers transitioning into this new era, I am releasing the standalone core tool completely for free. It includes a selection of materials from my MAD library and serves as an open prototype for what is to come .
- Download the Free Community Edition: You can grab the standalone .blend file directly on Gumroad .
- Expand Your Workflow: If you are looking to integrate this into a professional production environment, this generator is also included as part of a larger algorithmic ecosystem on SuperHive: PARAMETRIC: Architectural Design Suite .
Procedurality is the smooth transition we need into the era of AI. I invite you to test it, break it, and explore the future of systemic design with me.
Visualizations are AI-assisted; the procedural system and geometry are 100% hand-crafted.
