Baking normal map error - cylindrical container

Support Materials and Textures
1

As a beginner in Blender,I’ve sculpted a high-poly model of a cylindrical container and attempted to bake a normal map onto a low-poly object. Despite several attempts, I consistently encounter a seam along the UV edges after applying the texture.

I’ve tried resetting the normals on the low-poly model and adjusting the UV edges multiple times, but the issue persists.

Why is this happening, and how can I fix it?

error_20240215
error_202402151078×1398 219 KB

2

First off, welcome to the community, @box621863! I assume and hope you have read the manual page about the Normal Map Node (here: https://docs.blender.org/manual/en/latest/render/shader_nodes/vector/normal_map.html#normal-map-node), but can you confirm that you are using the Non-Color color space option on your Image Texture Node? I can’t see it from your screenshot.

3

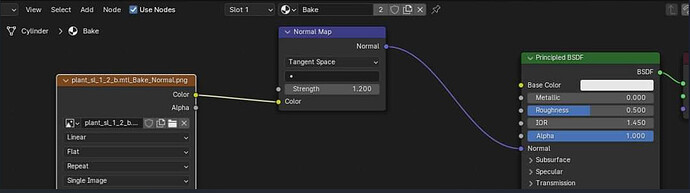

Thank you,I followed the instructions in the manual and here is a screenshot of my nodes. I indeed converted the image into a normal map and connected it to the BSDF node.

image1064×298 43.1 KB

4

Thanks for the prompt reply! Now, it looks like the bottom of your Image Texture Node is cut off in the screenshot, so I can’t see the color space setting you used. Can you take another complete screenshot of that node or confirm that the color space setting is set to “Non-Color”?

5

It feels like the normal is upside down… :thinking:
Check if the normal of the modeling is normal.
