Cell Fracture tool always divides the object into 8 pieces

Support Technical Support
1

I just installed the tool because I was going to use it for my glass-shattering animation.
But when I actually tried to use it, no matter the setting or the number in the source limit, it always divides the object into 8 pieces. I don’t know how to fix this…

I just created an account for this problem, but since new users can’t post attachments, I’ll just share that I was meant to divide it into a hundred pieces, and the glass is 0.1 meters thick. Can someone help me? qwq

2

I don’t know exactly because it’s not a tool I use often.

Please refer to the attached video below.

3

Welcome :tada:…

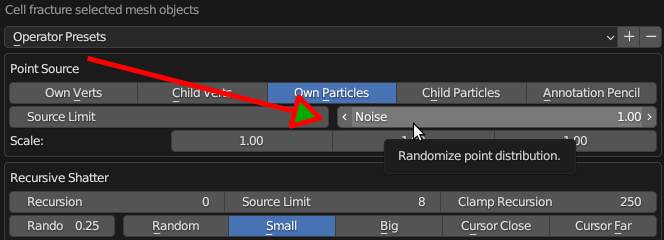

You might increase the Noise value for this subdivision in the Cell Fracture dialog…

CellFracNoise

So it will distribute a bit more random…

cellfracNoise

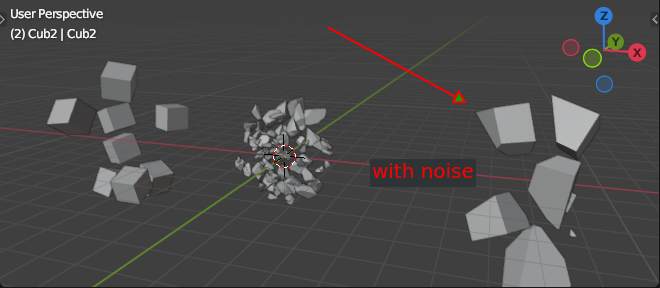

cellfracNoise2

4

Thank you for welcomeing me!~ ^^"

I did that already, but it doesn’t divide the pieces into 100… (it still divides by 8)

5

Hmm… you might show your settings (Mine is in 3.6…) ?? Or even share a file… so someone else can have a look too ?? Maybe using Random insted of Small or Big… ?

( You did apply scale to you object ? )

6

Here is a video of me doing cell fracture, but alas…

My version of Blender is the current one (4.4.3)

7

What do you use for the fracturing effect?

8

you have to add a particle system to use the own particles mode effectively.

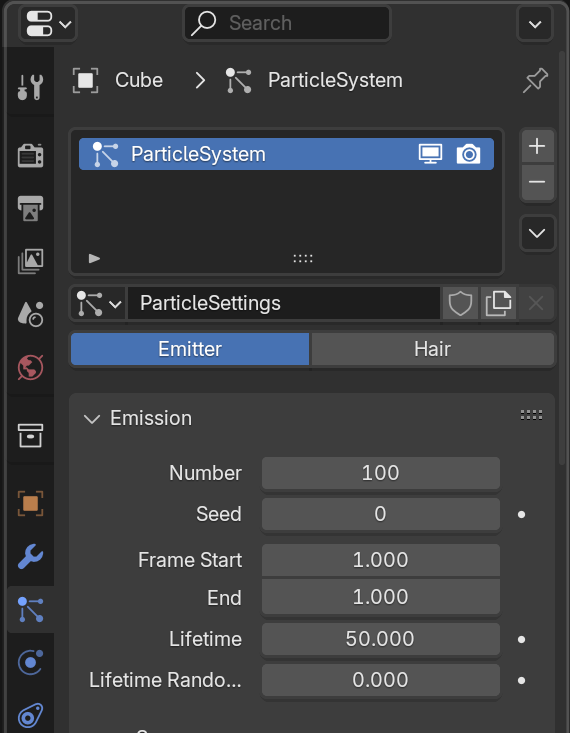

Add a particle system with 100 particles:

image570×733 45.8 KB

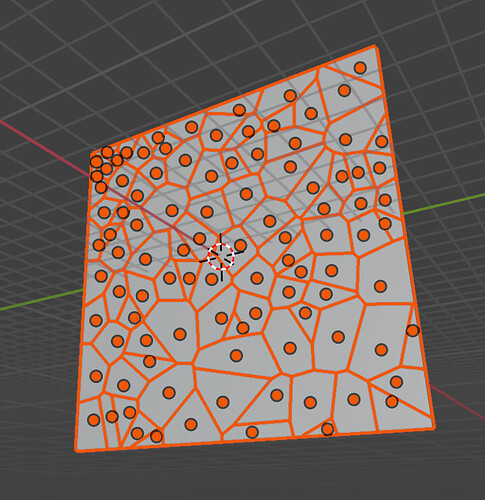

Then the cell fracture tool should work as expected:

image717×739 182 KB

9

It worked! Thank you~

But why is this the case? (Like, are there any other options? (that involve the annotation pencil, specifically))

10

There are many things I don’t know in detail because it’s a function I don’t use very well. :sweat_smile:

The way you destroy objects can change shape with optional settings.
The video attached above also has a description of the function.
※ For detailed option settings, see the video that explains the features of Cell Fracture

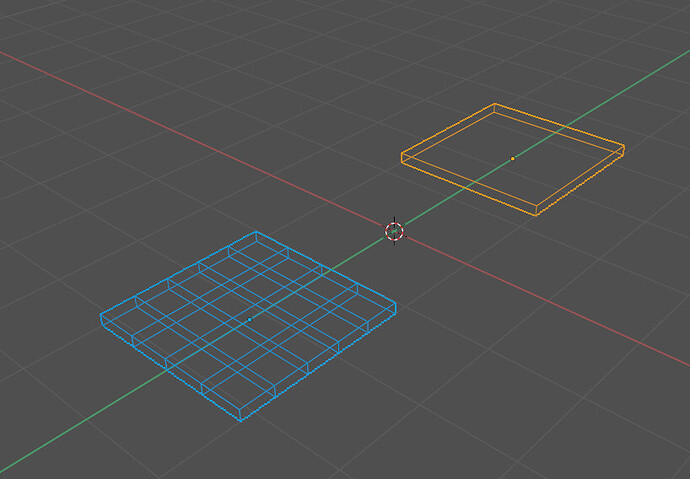

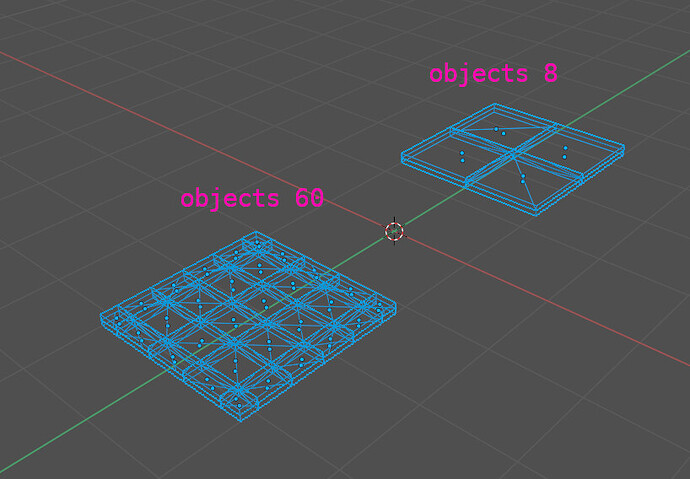

And the amount of objects that are being destroyed is
I think it depends on the edge configuration of the basic objet.
I set 100 for the test.

It appears to be the number of objects that can be created between each vertex from the entered value.

11

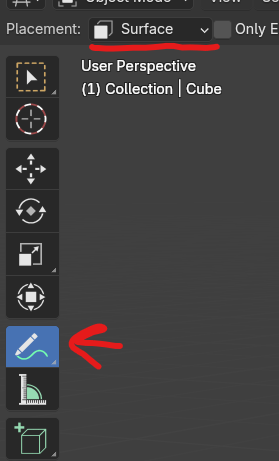

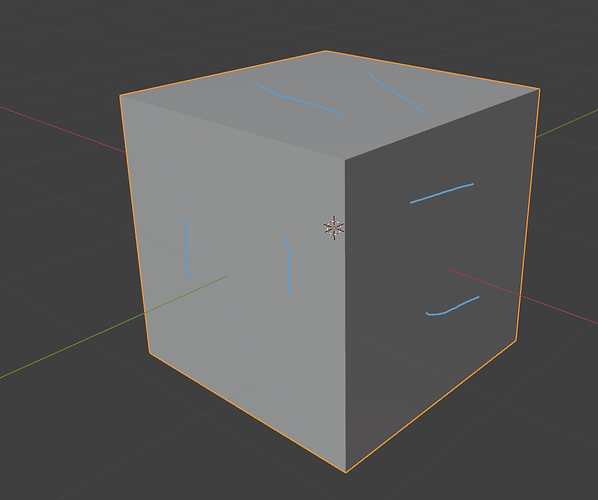

Ok, take your object and draw on it using the annotation tool, set to surface mode:

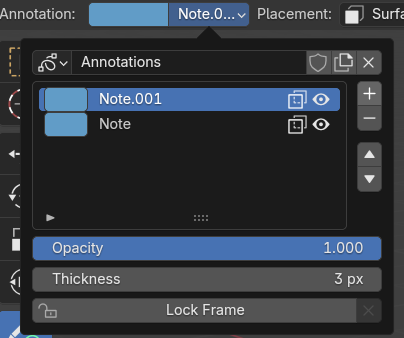

You’ll need to add a new annotation layer, the default notes layer doesn’t seem to work:

image1084×905 51.8 KB

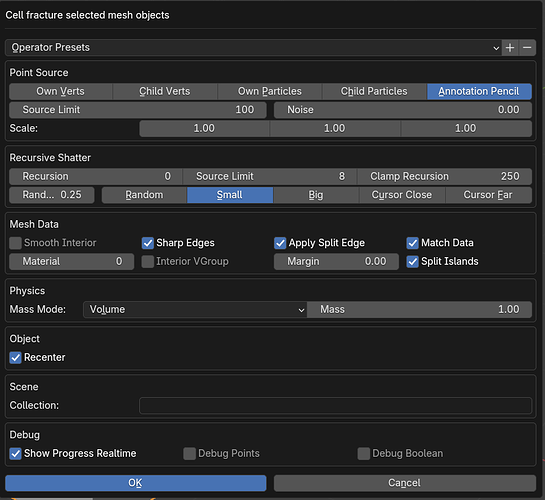

now run cell fracture set to annotation pencil mode:
image796×729 64.3 KB

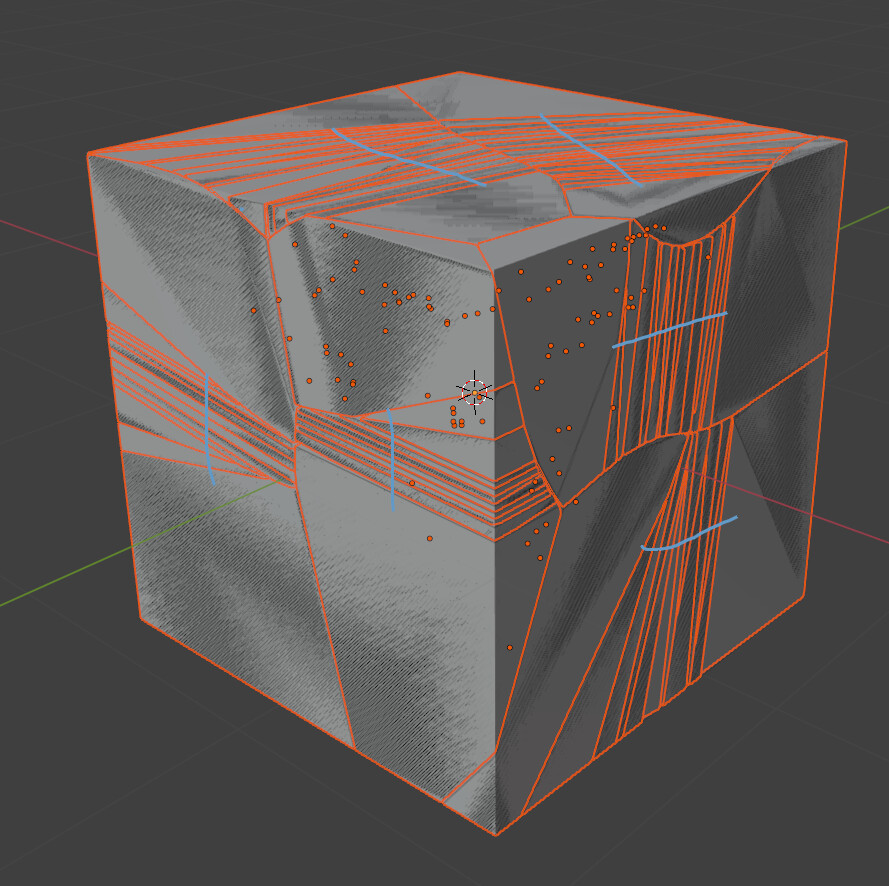

This will generate center points for the fragments along the annotation lines and fracture out from there:
image889×886 217 KB
