EEVEE transp mat

Support Materials and Textures
1

I have set up a cycles mat with some transp mat
how do you set up EEVEE to render this mat transp in render F12

and also after render is there a short cut to same the render image ?

here is sample file for testing

EEVEE-Transp1.blend (1.4 MB)

thanks
happy bl

2

Try using “Alpha Blend” instead of “Alpha Clip” in your material settings.

3

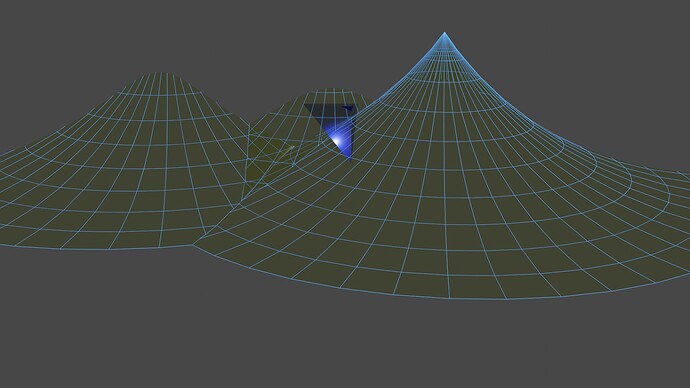

if I add a cube in middle of yellow shape I don’t see the whole cube only part of it!

may be because the second wiremesh object is not really transp
is there a way with wireframe node to have transp too

I would like to show the lines for wireframe too and bright to better see the shape in 3D

ztr1
ztr11920×1080 203 KB

thanks
happy bl

4

Adjust your camera clip end settings. Yours is set at 100m. Your objects are very large. You could scale them down as well.

5

I had the camera at 9999 !
thanks I modified it will test again

for the outside wiremesh
is there a way to make lines with some emission node for brighter lines?
and what nodes set up to modify it

thanks
happy bl

6

In the material, crank up the intensity (I tried 100 and it worked well).
In the EEVEE settings turn on bloom and adjust the settings to your liking.
