Help with using the Shrink Wrap modifier to cut holes

Technical Support Modeling
1

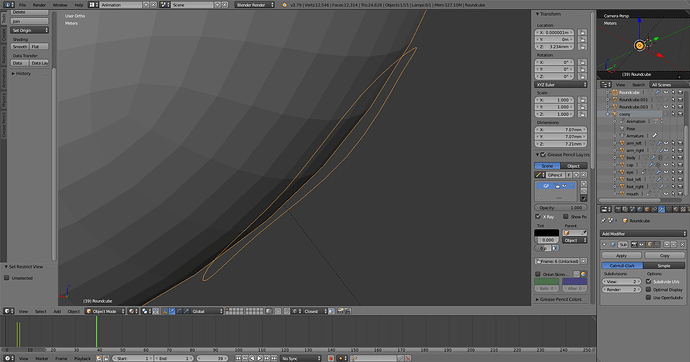

Can anyone please help me figure out why my recent attempt at using the Shrink-Wrap modifier to make a circular hole in my model isn’t working?

shrinkwrap_help
shrinkwrap_help1904×1001 190 KB

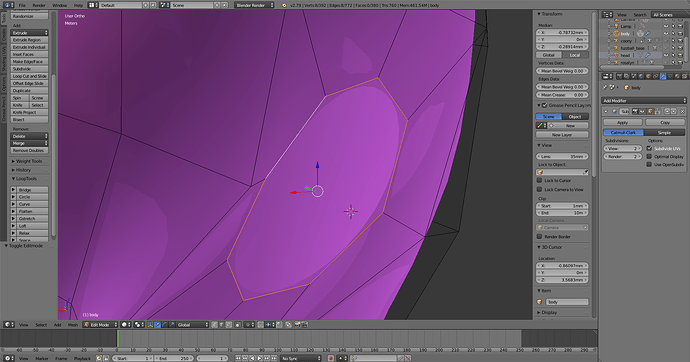

For some reason after shrink-wrapping the circle that serves as the hole & joining it to the mesh, the circle is projected just above the surface of the mesh instead of being flush right against it.

shrinkwrap_help_2
shrinkwrap_help_21904×1001 271 KB

I’ve done this process multiple times with other models but for some reason I can’t get it to work with this one.

Any help whatsoever would be greatly appreciated!

Blend File:
shrinkwrap_help.blend (768.9 KB)

2

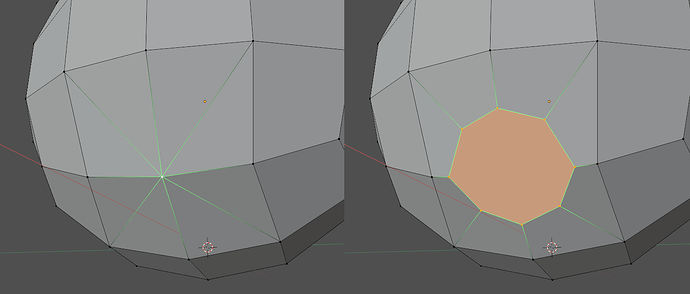

I don’t know how you did the modeling.

image906×792 34.6 KB

If it looks like an image from the side, it’s normal.
If it’s transformed, it’s transformed during the modeling process.

image1443×615 65.3 KB

Alternatively, edges can be constructed and cut using Vertex bevels, such as images.

3

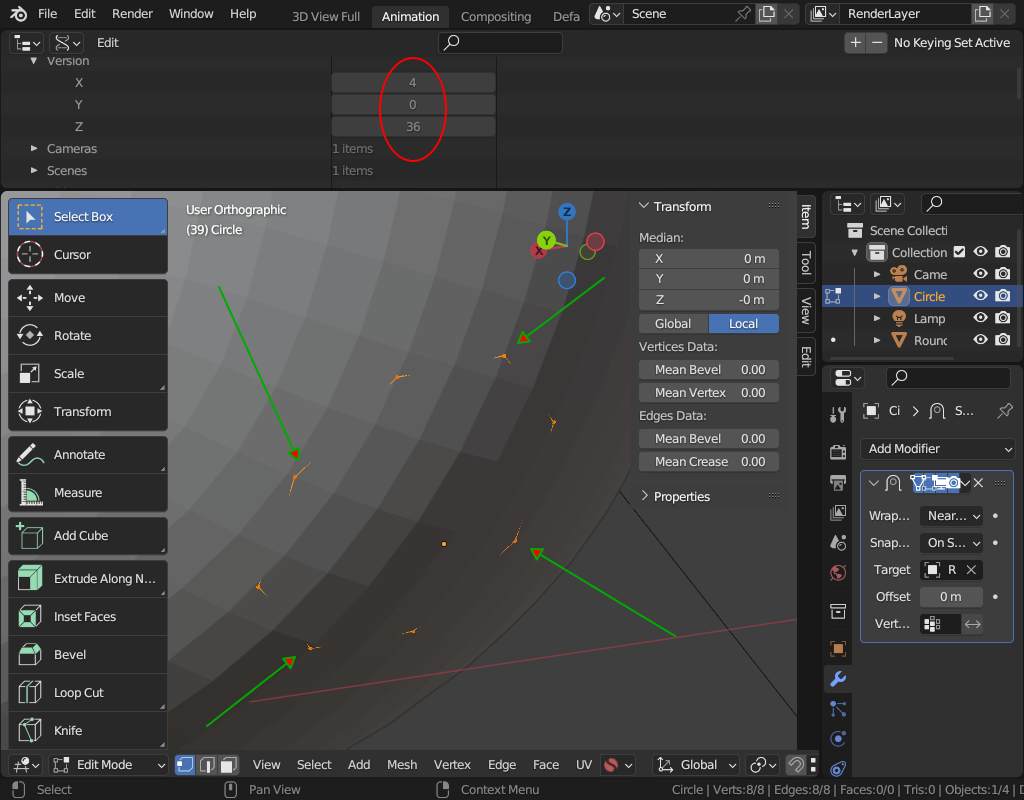

This somekind of funny and also weird:

You showing this in 2.79 but your file is from 4.0.36 (yes this “intern” versions are also weird)…

So i’ looking at this in 3.6… :wink:

shrinkwrap_help
shrinkwrap_help1024×800 67.8 KB

…and i see not problem. Since your example file is very sparse and in your image you have some head model… are there an other modifiers, shapekeys or armatures involved ??
