High number of Instances render black in EEVEE

Support Technical Support
, ,
1

I’ve been having this limitation on a recent project where increasing the instance count results many of the instances turning black. It only happens when trying to render in EEVEE. Any thoughts on a solution that allows me to keep the high instance counts?

image915×401 215 KB

The issue can occur from adding other instance dense object so it’s not local to the object.

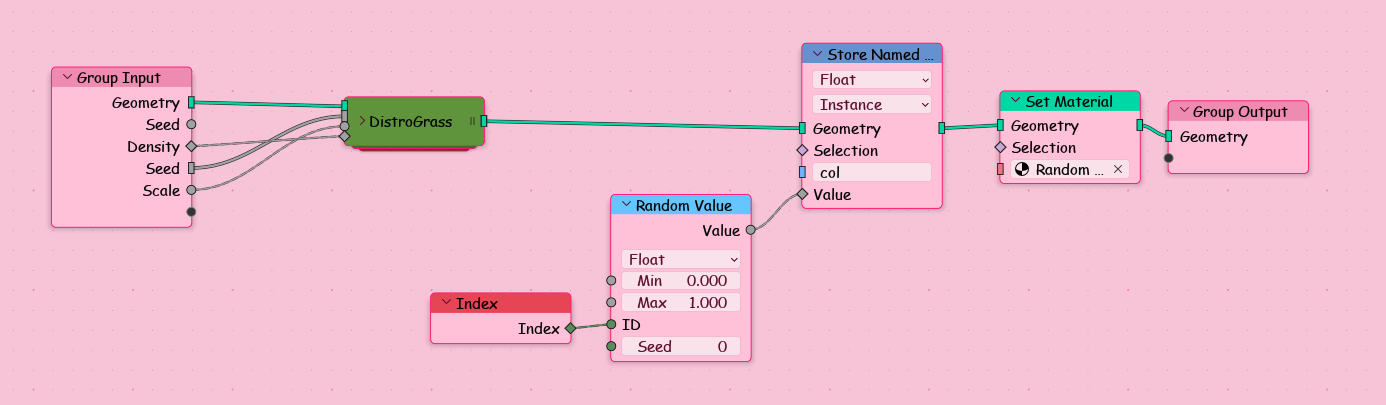

This is the node setup.

image1386×405 59.4 KB

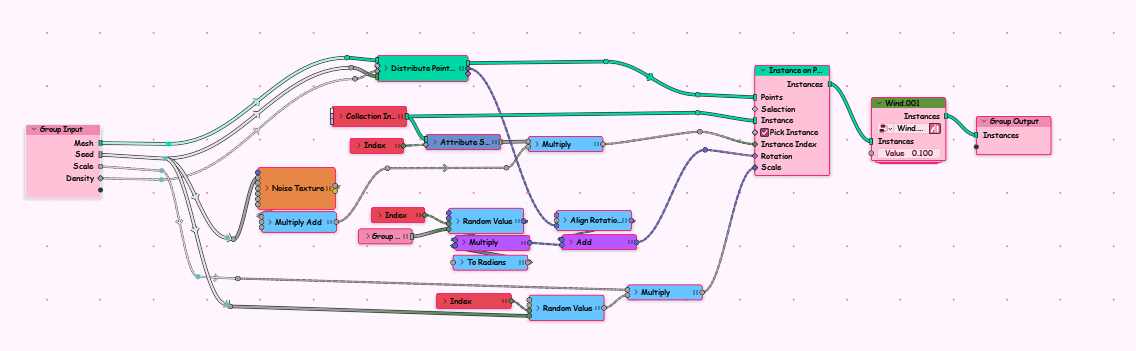

DistroGrass Group Node
image1136×351 76.6 KB

Thanks!

2

It may sound counter-intuitive but have you tried realising the instances?

3

image2552×1439 598 KB

Heres 1/2 million cones in Eevee. Blender 5.1

How many instances are you talking?

I have a 12 Gig 4070 RTX NVid Card

What GFX hardware are you running?

4

DOH! That makes so much sense.

but since you ask.

4 or 5 easy trees from the add-on lots of leaves. bunch of grass. probably a 1/4 Million instances on a 12gb 3080. I also have a bunch of procedural texture bogging up the project so this was just not the problem i needed in my way.

Thanks for the quick help!
