Hi guys, I am reading through William Vaughan’s “Digital Modelling” book and Im on the second exercise which is modelling a football. I have followed all the steps but am currently stuck on one part.

The exercise starts with creating a tetrahedron which I have done and followed through with no problems up to this point.

The quote from the book is thus “I wanted to deform the shape of this mesh into a sphere, so I used a deformation tool that shrink-wraps any geometry into a sphere.”

Is this possible in Blender?

Here is a link to my blend file: https://www.dropbox.com/s/y8skjwqd0p0c6tp/Football%20Practice.blend?dl=0

Sorry if this isnt the way you do things.

Thanks

Jim

#2

Shift+Alt+S / 1

Screen Shot 2015-06-14 at 15.27.19.png1272×882 141 KB

or

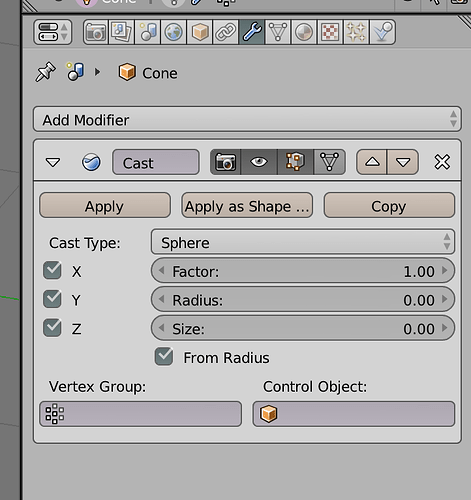

Use a Cast modifier set to Sphere and set the factor to 1 http://www.blender.org/manual/modifiers/deform/cast.html

Screen Shot 2015-06-14 at 15.30.21.png722×766 70.3 KB

#3

Thanks for that Richard. I used the transform method which seems to work best. The cast method changed the shape and size of all the panels on the ball. I need them to stay the same.

The only other thing is, when using the transform method, in the book it shows curved edges on the blue panels whereas mine stay straight. What would cause this?

Thanks

Jim

#4

The cast method changed the shape and size of all the panels on the ball. I need them to stay the same.
Because the object origin was not in the centre of the object. When corrected you get the same as the To Sphere option

Screen Shot 2015-06-14 at 16.18.48.jpg1199×470 86.3 KB

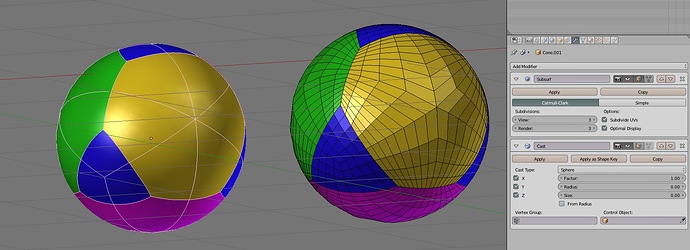

You can simplify the mesh to get slightly different finished look

Screen Shot 2015-06-14 at 16.23.03.jpg1780×646 240 KB

#5

That’s perfect, thanks so much for the help!

Jim

#6

Ok I need more help with this.

Once I had created the sphere thanks to Richard I had to extrude each panel and then bevel the edges but what I found is that after beveling each panels edge it has created a gap between the panels.

I extruded but didnt move, then used shrink fatten (Alt-s) by 0.07 then selected the edge loop of each panel and beveled at 0.01.

Blend File here: https://www.dropbox.com/s/q714vbwzel0g7cd/Football%20sphered.blend?dl=0

What am I doing wrong?

Thanks Jim
