Need help to create a star.

The_alchemist · June 15, 2012, 7:43pm

I really need help to create a basic 5 point star but with the tips curving, I cant figure out how to do this, could some one help out, I am unsure how to and any help will be appreciated

eppo · June 16, 2012, 4:54am

Create circle, set points to 10.
In edit mode, select all vertices, menu Select -> Select every n-th and scale inwards. That’ll create 5 point star.
Select all vertices and W subdivide 4 to 6 times.
Select tip vertices, Top view , Proportional edit on, rotate vertices.

Hope helps.

RickyBlender · June 16, 2012, 5:08am

there is also an addon script embedded that creates a 5 point stars in 2.63!
in the extra meshes i think
yes see basic objects in menu !

salutations

The_alchemist · June 16, 2012, 6:10pm

what do you mean select every n-th? and where is this menu you speak of?..

The_alchemist · June 16, 2012, 6:12pm

and also where is the basic objects menu?

Richard_Marklew · June 17, 2012, 1:48am

[quote=“The_alchemist,post:4,topic:544246"”]

what do you mean select every n-th? and where is this menu you speak of?..

[/quote]

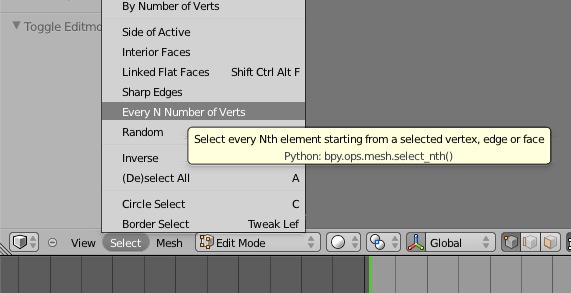

In the Select menu

Attachments

Richard_Marklew · June 17, 2012, 1:51am

[quote=“The_alchemist,post:5,topic:544246"”]

and also where is the basic objects menu?

[/quote]

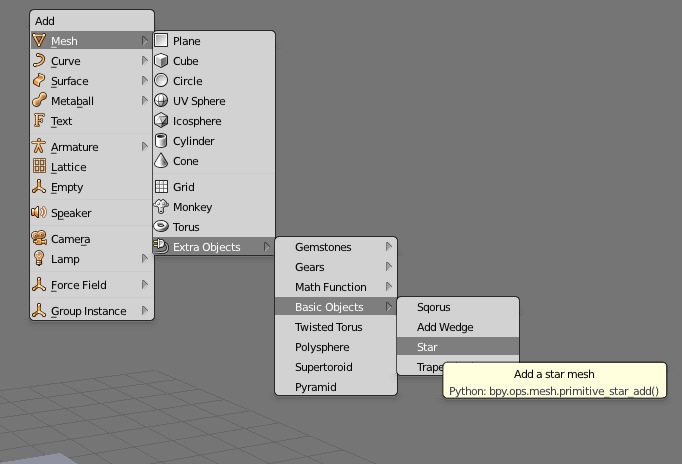

File / User Preferences / Addons. Go to the Add Mesh section and enable the ‘Extra Objects’ addon by selecting the tickbox. Then from the Shift+A add object menu you can select a star
