Odd Face Shading Issue

Support Materials and Textures
1


This is just a polygon face. For some reason the left side shading doesn’t look flat and solid as the right side.
Why is that? I need it all to look like the right side. In Edit mode I selected the face and tried both Shade Smooth and Shade Flat, to no avail. I also tried the Normals but it’s not that either.
File

2

Your upload says access denied, you may want to fix that for people to see your file.

3

Thanks for the heads up etn249. I just granted you access though.
I think I just fixed the link access.

4

The object has some modeling issues, some overlapping vertices. Try selecting everything and do a “merge by distance”. Also recalculate the normals after, because it might alter them when merging.

5

The object does not have a thickness, so it is not a condition for shading problems.

This is a modeling problem.

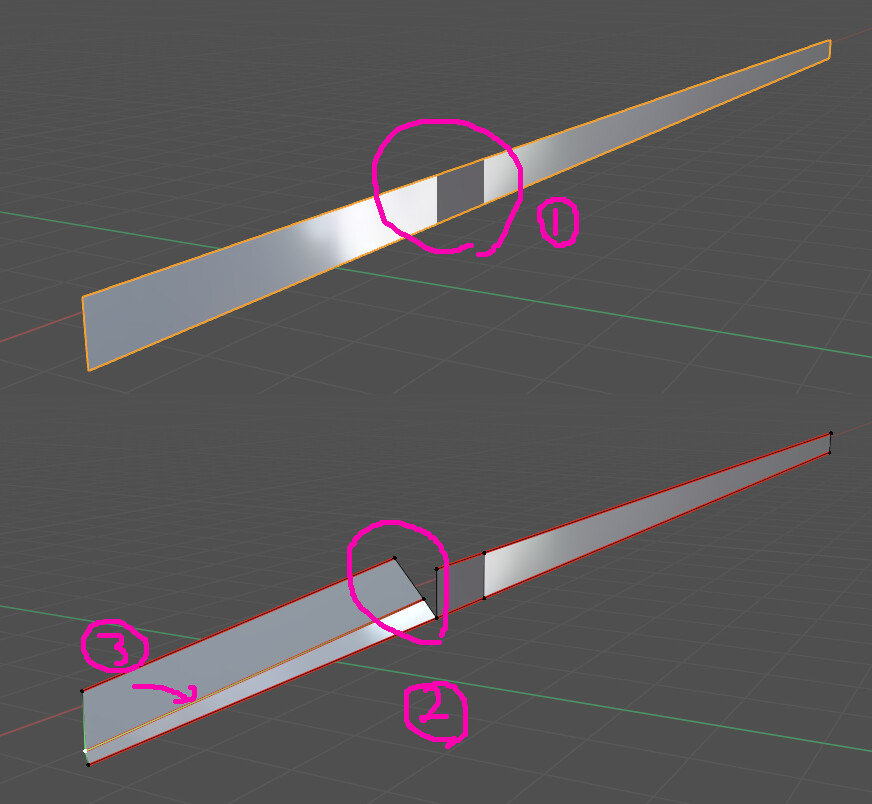

hgfhf
hgfhf872×804 106 KB

  1. Flipped Face Problem
  2. isolated vertex
  3. overlapping edges
