Hi B3D folks!
I’d like share my personal project.
I mixed Wankel Engine, Planetary Gear, Blender 3d, Cycles and Animation Nodes.
All in 30 seconds / 900 frames.

Thumb

_

Speed Painting

_

_

Show More Frames... (hidden)

_

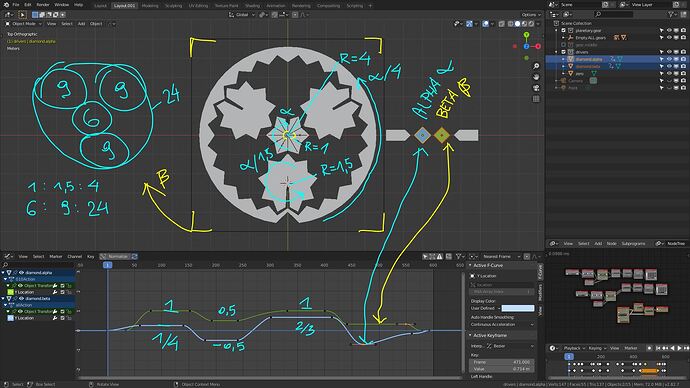

Precise speed animation was an issue. I was able animate rotation euler but not speed.

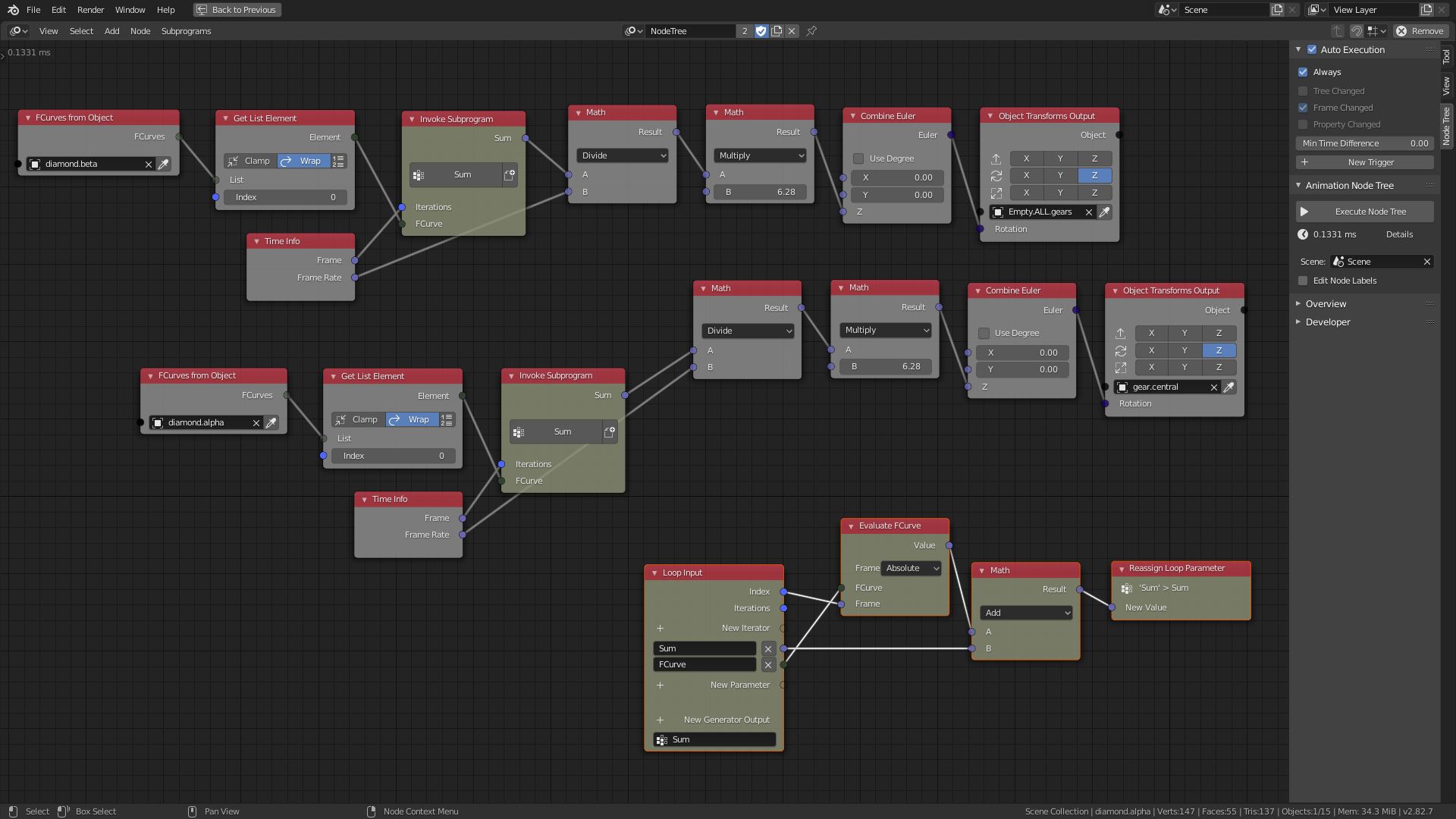

I found AnimationNodes helpful. I used objects location F-Curve as source to recalculate in AN.

_

_

_

and movie

_

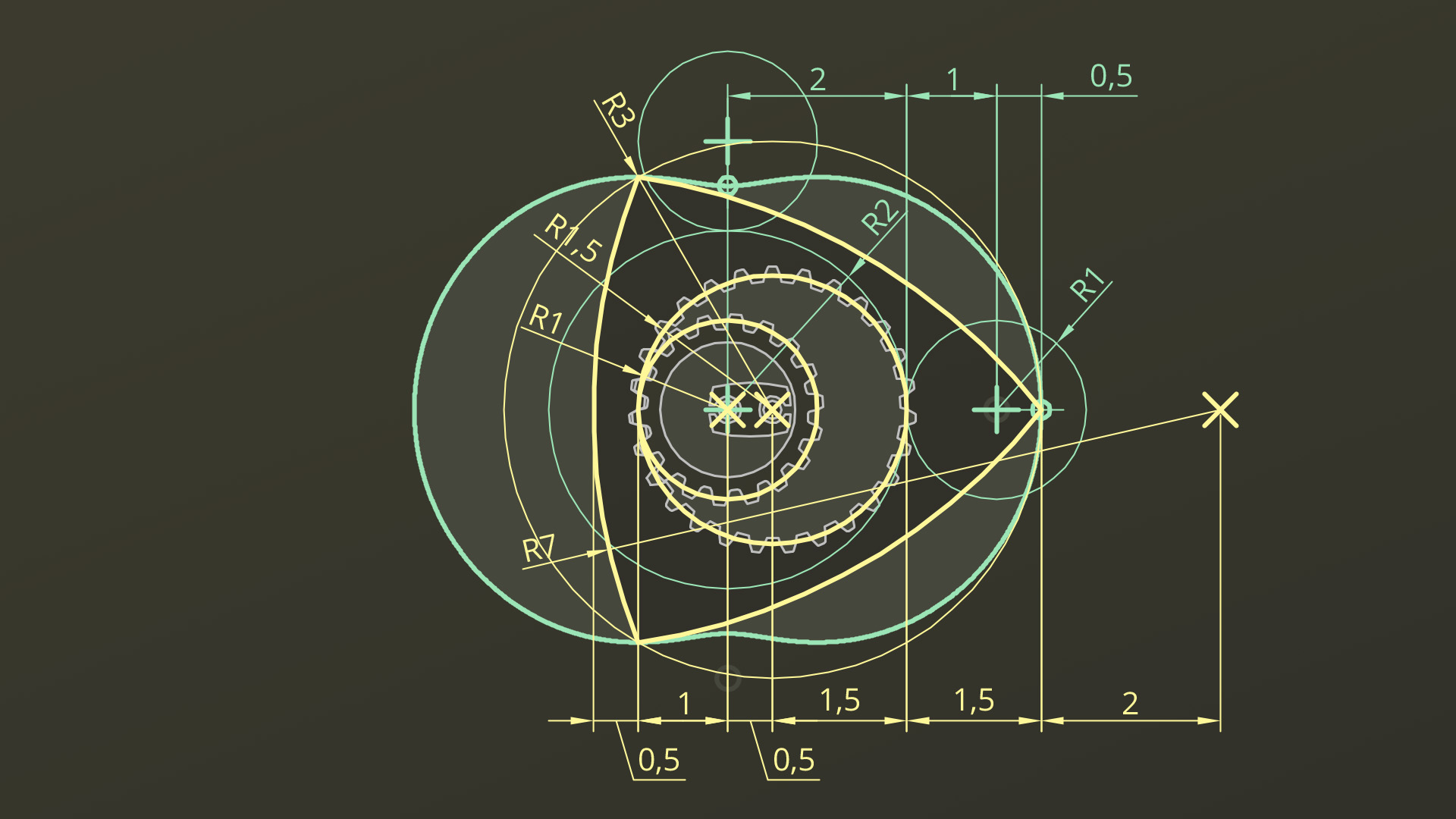

And Wankel Engine geometry is awesome

_

_

[konrei]

I enjoy this animation.
Especially because you used AnimationNodes in it. Really beautiful mix of technical precision and style.
To understand your rig: you can change parameters however you want or do you need to follow a certain mechanical rule to achieve the result? Your sketches on the FCurves and the numbers look like there must be a correct math behind it.

Nevertheless… beautiful.

[Will_Brigham]

This is so satisfying to watch!

Just wanted to say good job

[mohamed_omer]

Complexity… High level.
Awesomeness… High level.
Such a great hop you made here dude.

[paawweeuu]

Thanks

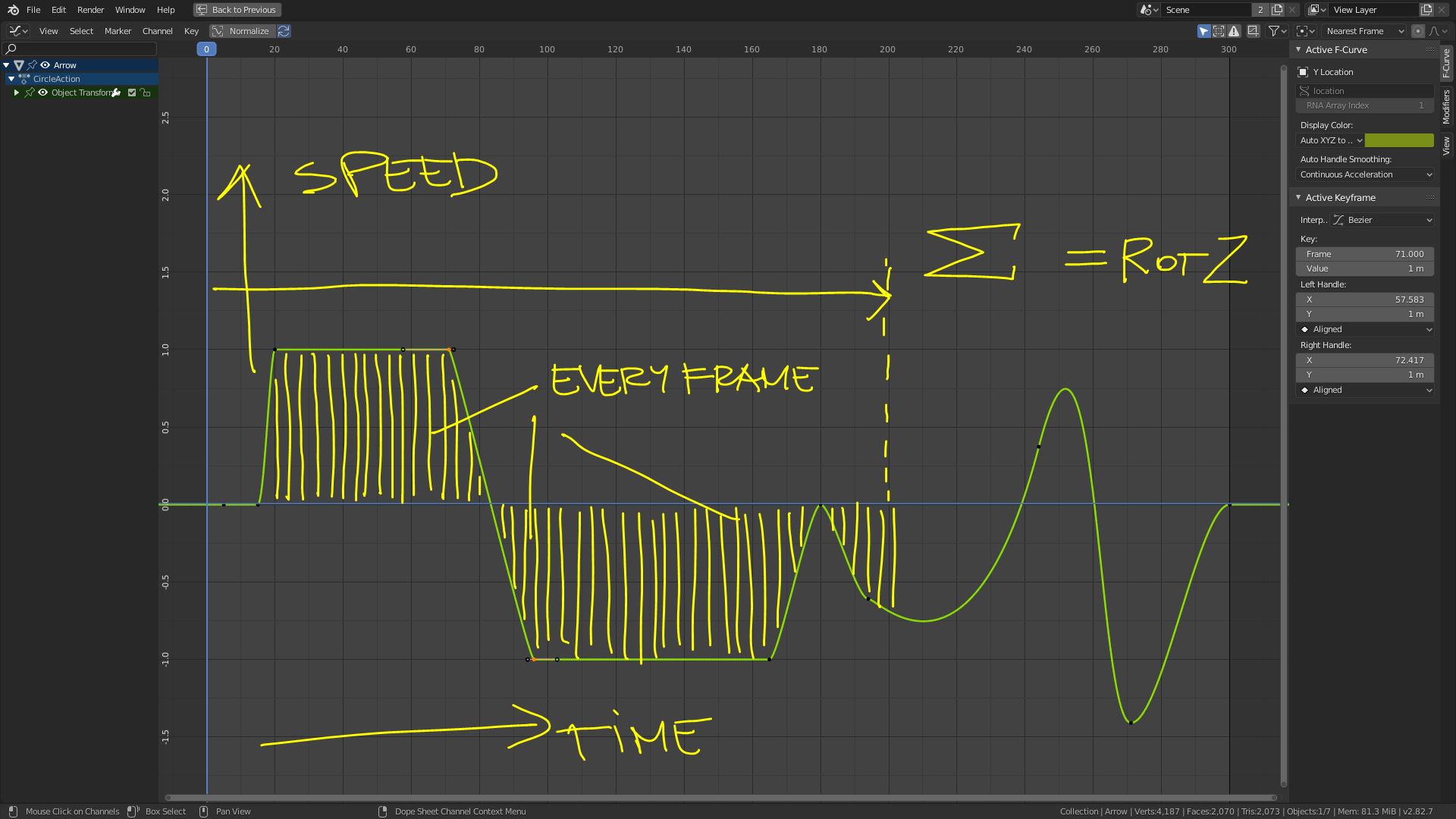

1. i need some object, empty, plane, whatever
2. i animate location Y with keyframes so i get my FCurve - that will be my speed value
3. i use animation nodes to evaluate that curve and to sum all speed values til certain frame, 1 execution per frame. At frame number 1204 i add all values from frame 0,1,2,3,4,5…,1204 and that is my euler_rotation for frame 1204.
4. sorry, if that is not clear, my bad
5. blend file may help, enjoy my mess
   https://drive.google.com/drive/folders/1bJ6mtjYIrd0eUdymLEvtI0e38-CAyYTU

[paawweeuu]

Thank You, Will.

[paawweeuu]

Thanks, dude.

[mohamed_omer]

It’s been a pleasure (Barley’s voice)

[paawweeuu]

…and motion blur test. Cycles vs Eevee (Blender 2.9). 10x faster

Speed Painting 2
