Texture gets screwy after applying boolean difference (ctrl + -)

PeterBr · September 21, 2020, 3:36pm

Any ideas why this happens and how to fix?

Before boolean difference

Shapes I want to use to boolean (these are planes with a solidify modifier)

Resulting mess after applying boolean via ctrl -

Any ideas how to fix this texture after applying the boolean difference modifier?

patnard · September 21, 2020, 4:08pm

Redo your UV unwrap with the applied mesh. If you wan to keep to non-destructive, maybe add your texture to the bool object, ans make sure the texture projection is from object, maybe?

PeterBr · September 21, 2020, 4:29pm

Thank you. How do I texture project from object? And which object should I be doing this “texture project” to?: the main box or the grid?

patnard · September 21, 2020, 5:01pm

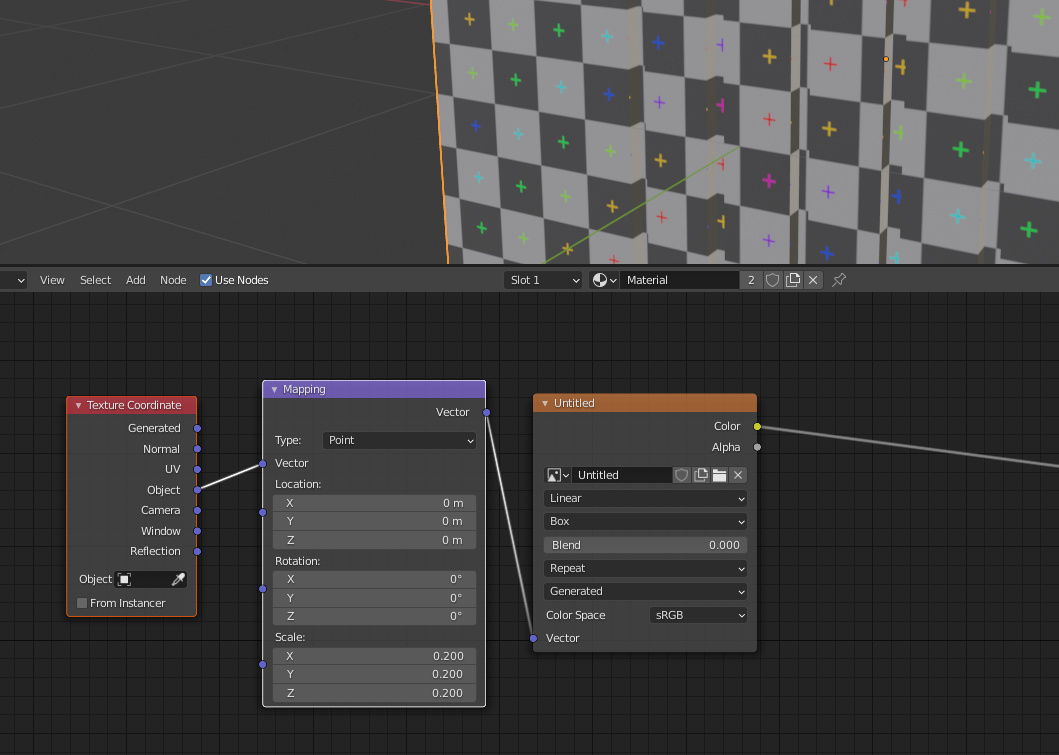

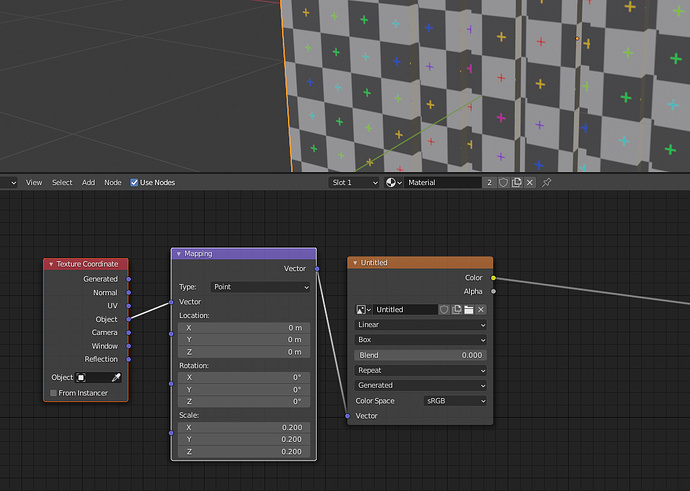

Inside your material

PeterBr · September 21, 2020, 6:23pm

Thanks P, but ended up Solving the problem another way. The grid planes were joined…and the culprit was the intersection of these planes, so I solved it by separating out the horizontals from the verticals, and the funky texture resolved. Looks fine now.
