UFO Chase

[sozap]

Hello everyone,

I’m super happy to present my last personal project !

Thumbail

Wireframe

Wireframe + Some FX

Creative Process

I wanted to study some stylization taking inspiration from TMNT Mutant Mayhem movie.
My initial goal was to work on an urbanish environment, and also add some FX to see how all those would play together…
Even though eventually I focused less on the environment that I initially planned, I took some extra time to make sure it can hold up especially in the distance where more stylisation/abstraction append…

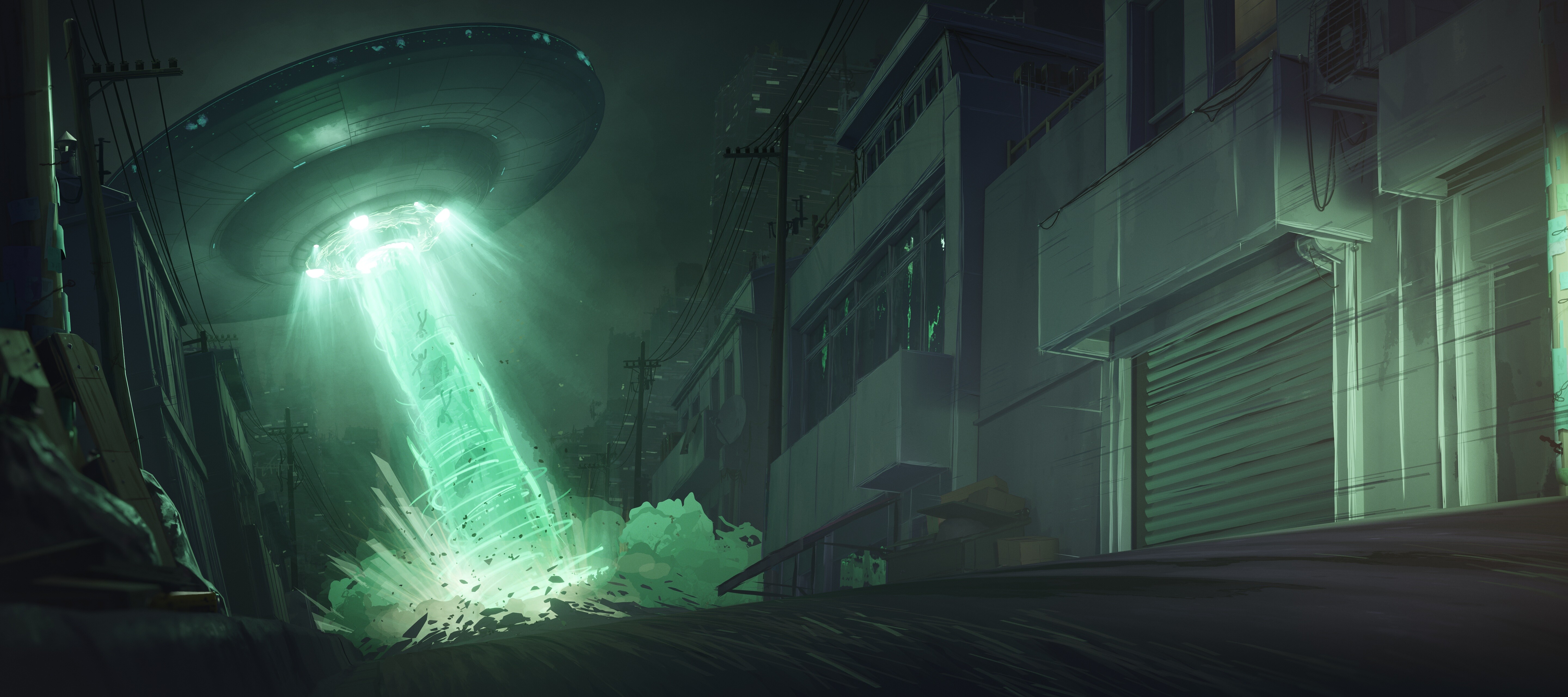

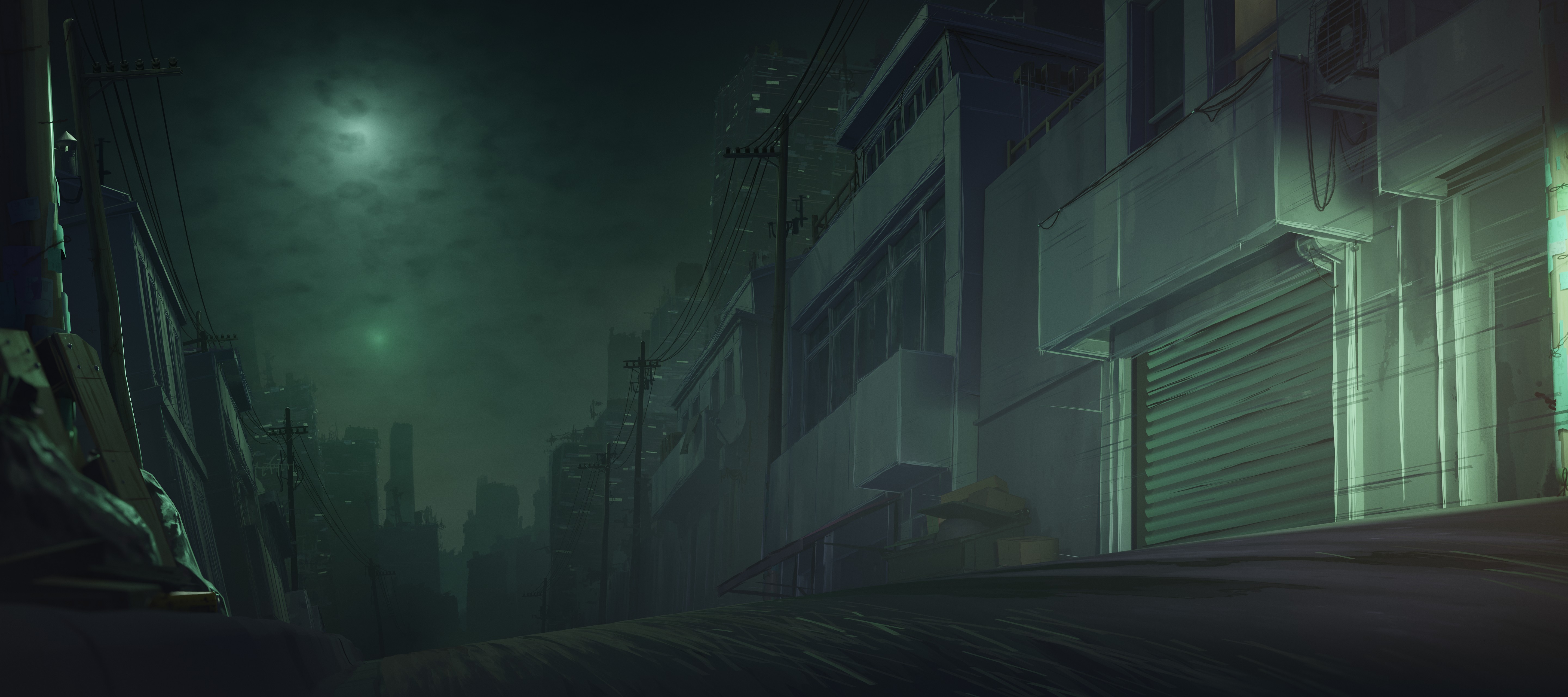

Background Only

Background & UFO

Anyway, at the beginning I wasn’t really sure how to mix those constraints and what to do exactly.
Eventually by gathering references and thinking a bit I got the rough idea.

Scene Blockout

After some fiddling with those simple elements I got the composition figured out. This was a great first step since I knew I had a basis I liked that I could build upon.

Car modeling

From there I did some blocking on the set, modeled the car and started to introduce light and mood.

First Paint-over

Even though I’m not very good at drawing this is enough to test some ideas quickly and plan multiple changes.

Introducing Style

At this stage it was important to add style element to set the tone and avoid getting too realistic while modeling. I needed a character in the car and I used one from a previous project. Then I focused on the wheels to find the balance between style and realism, then added smoke and effects on the road.

Style Development

Then to keep developing this I worked on the UFO’s beam, and introduced some simpler, more abstract buildings in the background. I also tested some line work on main buildings and added a few props.

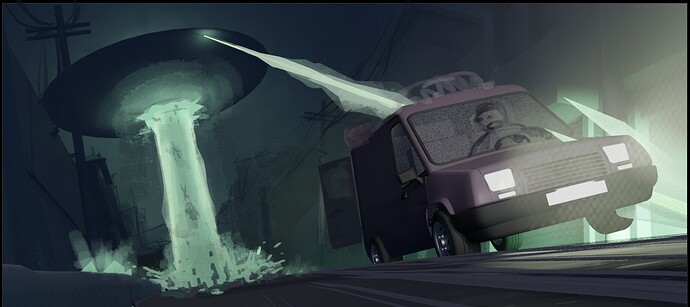

Second Paint-Over

This was about finding ideas for the UFO’s look, some stylized flares, and a few things to improve.

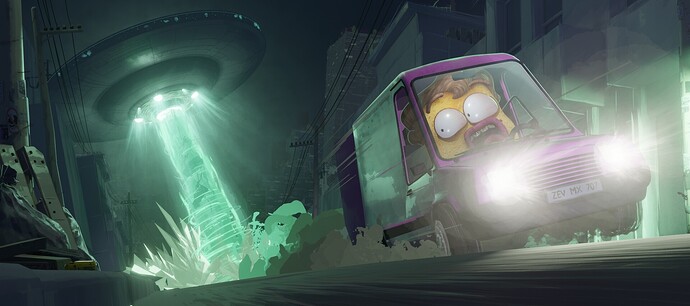

UFO & Flare Pass

Thanks to the paint over I had a clear separation between the thinking process/ideation and the more technical implementation, therefore it was relatively easy to add those elements.
I also abandoned the laser, at this stage I had mixed feeling and thought it worked well without !

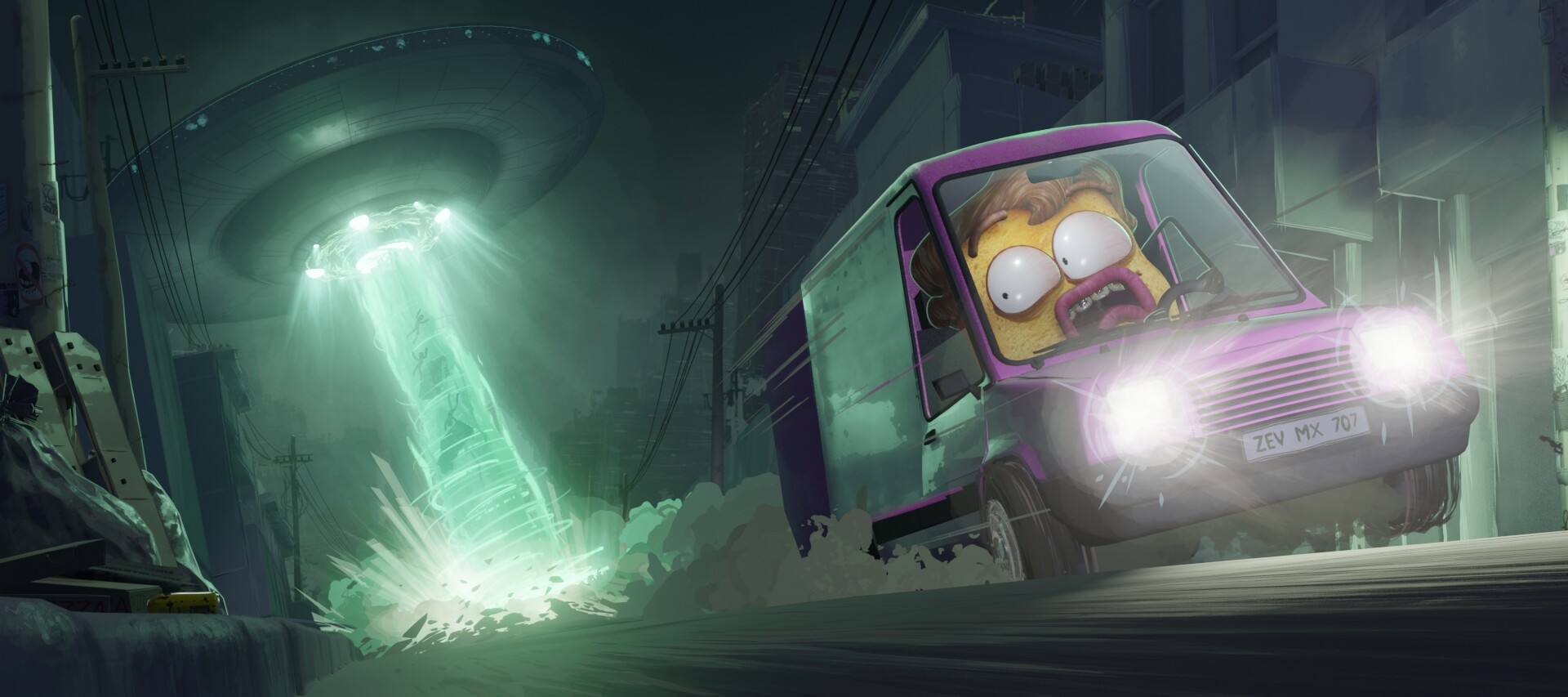

Impact FX and more composition work

Then I added the last main element, and from there I could move on to secondary details. The first thing I did then was to work on the distance fog to make sure we make the most of those buildings.

Building details…

Then I focused on detailing the buildings. Through the whole image making I was constantly adjusting composition to make sure everything reads well and balance out elements. That’s why once I changed buildings I had to move stuff like poles around.

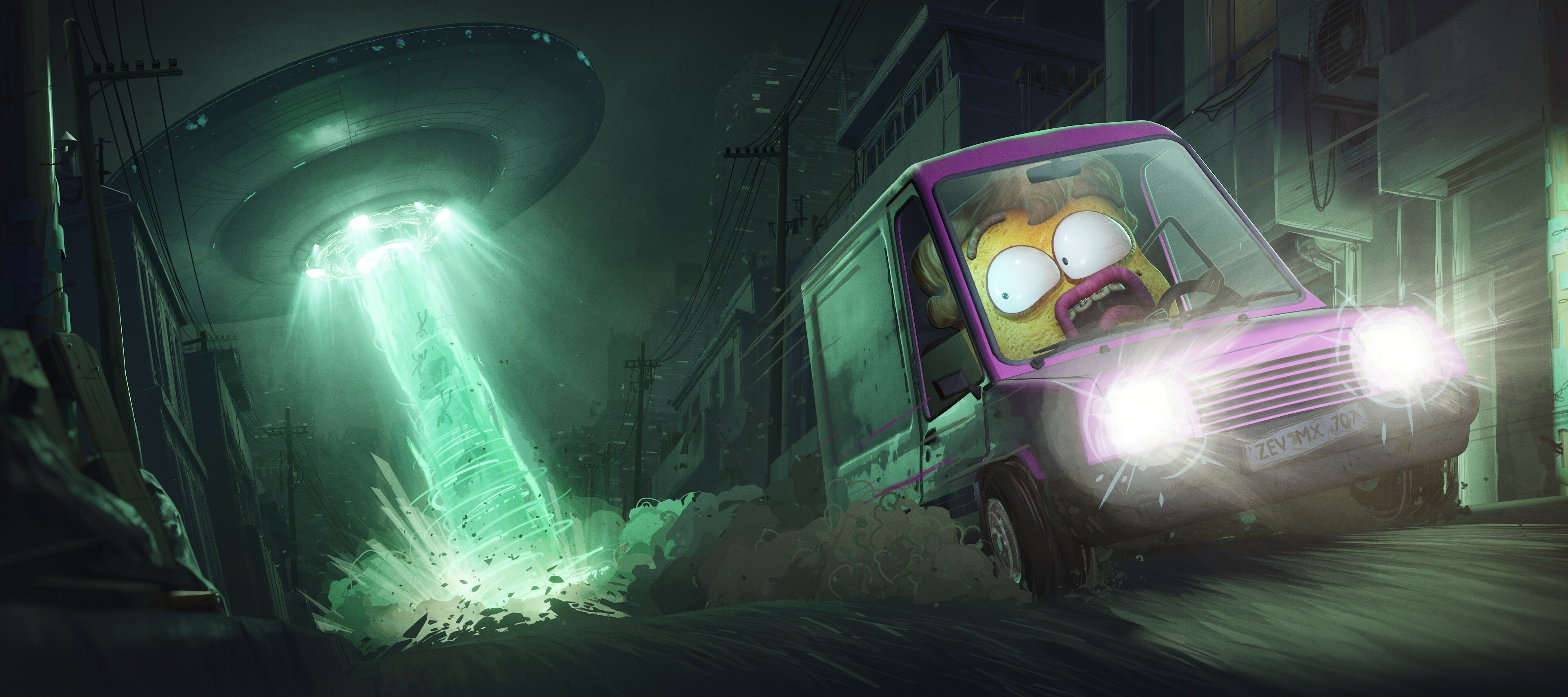

Last Paint Over before apocalypse

Then I did a last round of tinkering, I noticed I’ve left the wheel passing through the road and to change that without screwing everything I replaced it with a cylinder…
I also had the last minute idea of those scribbles in the smoke, I was a bit too close to finish to fully explore that, but I will definitely go back to that on another project !

And that’s about it !
I’ll make a second post that goes more into technical details, let me know if there is something you’d like me to cover !

[sozap]

Ok so this post is more on the tech side…

Assets

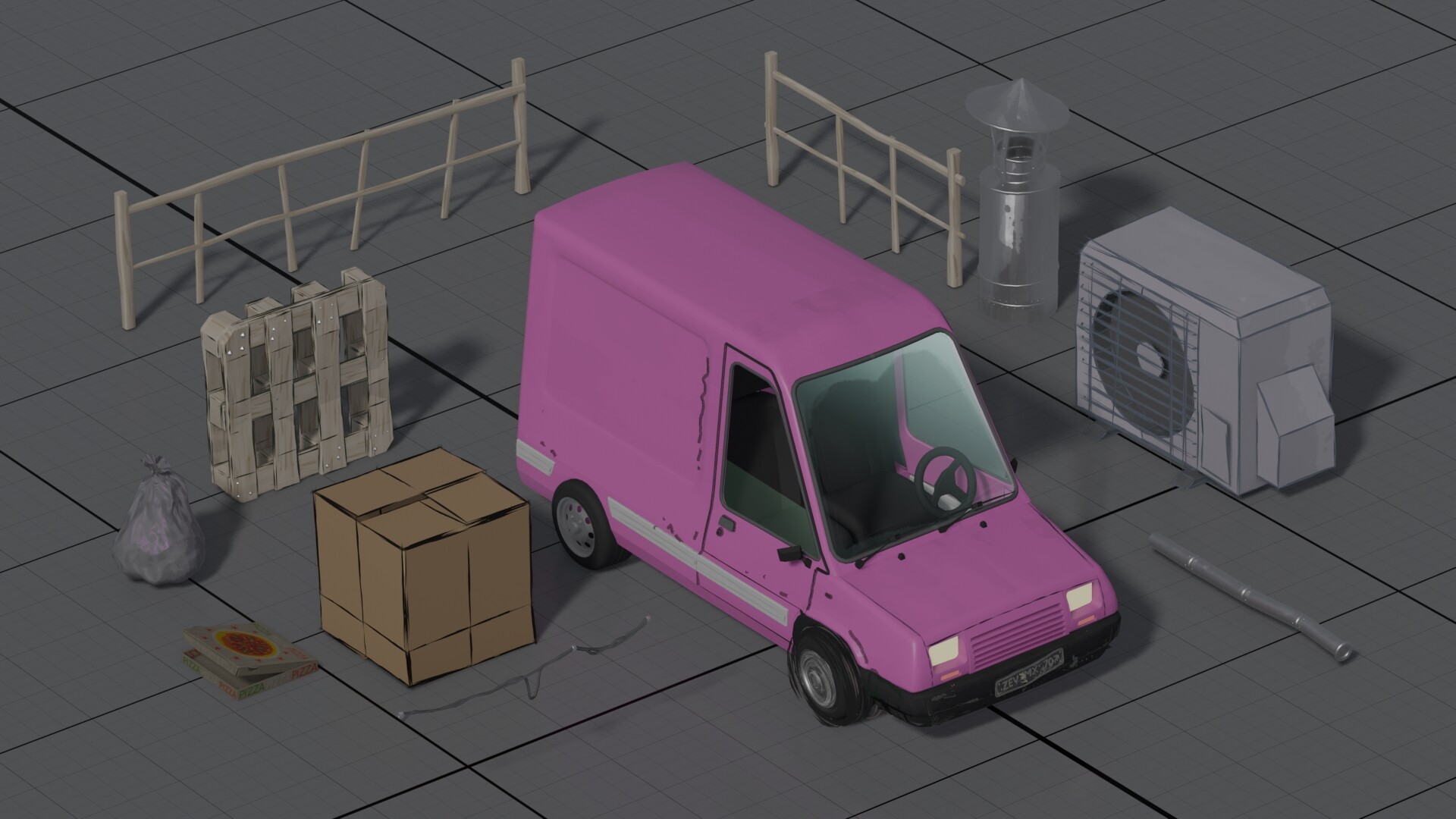

I modeled a few props, on the car I also painted some details using grease-pencil, that I converted to mesh so it integrates better. I tried to avoid too much painting to explore more procedural stuff but that was fun to do !

I kept shapes very simple and I prevented myself from adding to many stuff, the good things of making a still image is that I could really work from camera view unlike production where we never know where and how something might end up. This saved me a lot of time and was quite refreshing…

Background Assets

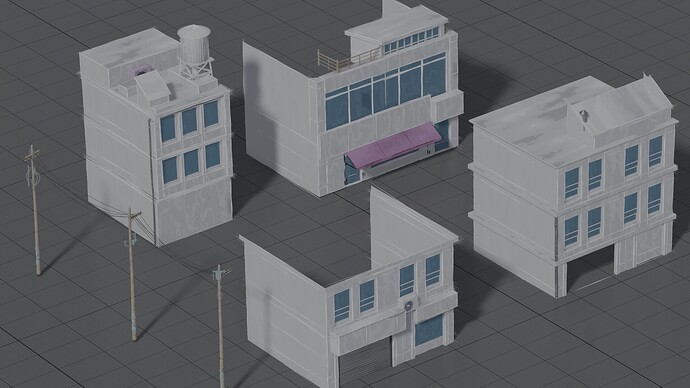

Since part of the art direction was to get more abstract in the distance I made those elements,
Some building generators, some even more abstract ones that was just textures on plane facing camera. And I also made those greeble-scribbles that I could put in some places to add a bit of noise instead of adding 3D greebles !

Scene Layout

A good deal of the set is deformed by a lattice to give that exaggerated perspective feel.
Then everything else is put according to camera view but doesn’t always makes sense in 3D.

FX
For all the FX I repurposed some geometry node tools I did on In Waves and see how they can adapt to other scenarios…

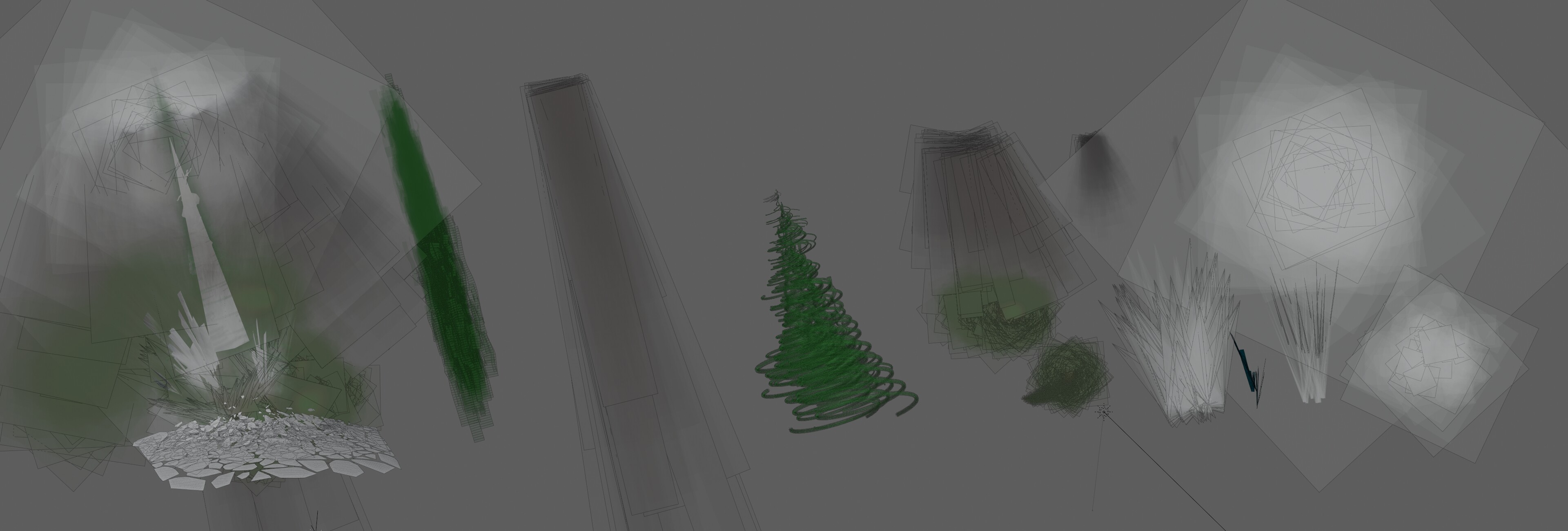

I’ll try to communicate a bit more in details about how they work later in a dedicated thread, on the overall it’s a lot of billboards based particles effects, and some effects based on curves that makes some kind of a brush stroke.

Then it’s all about adding layers of simple elements so it look complex.

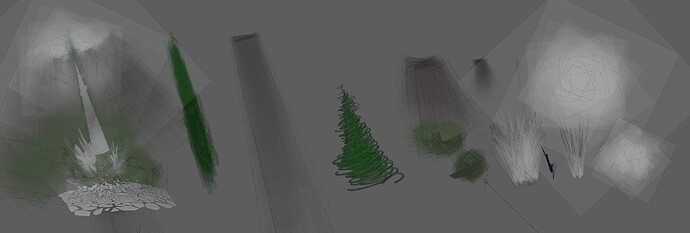

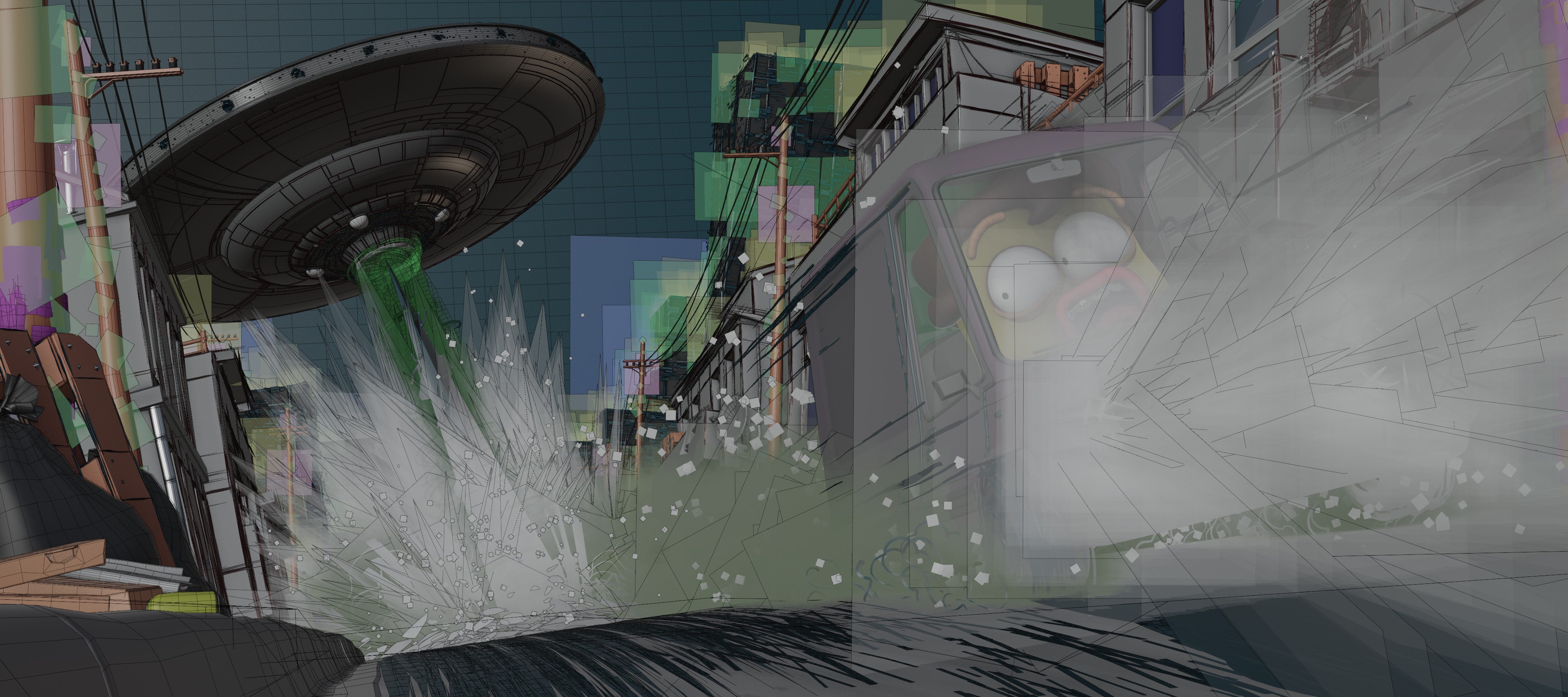

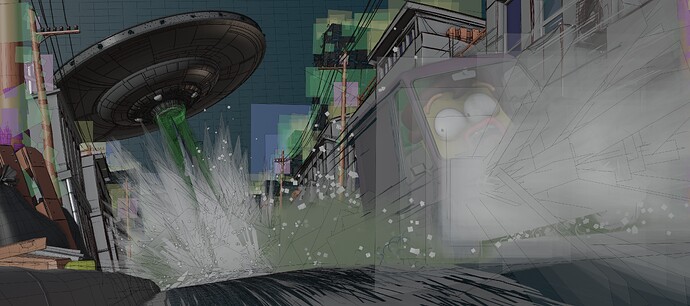

The same elements in wireframe :

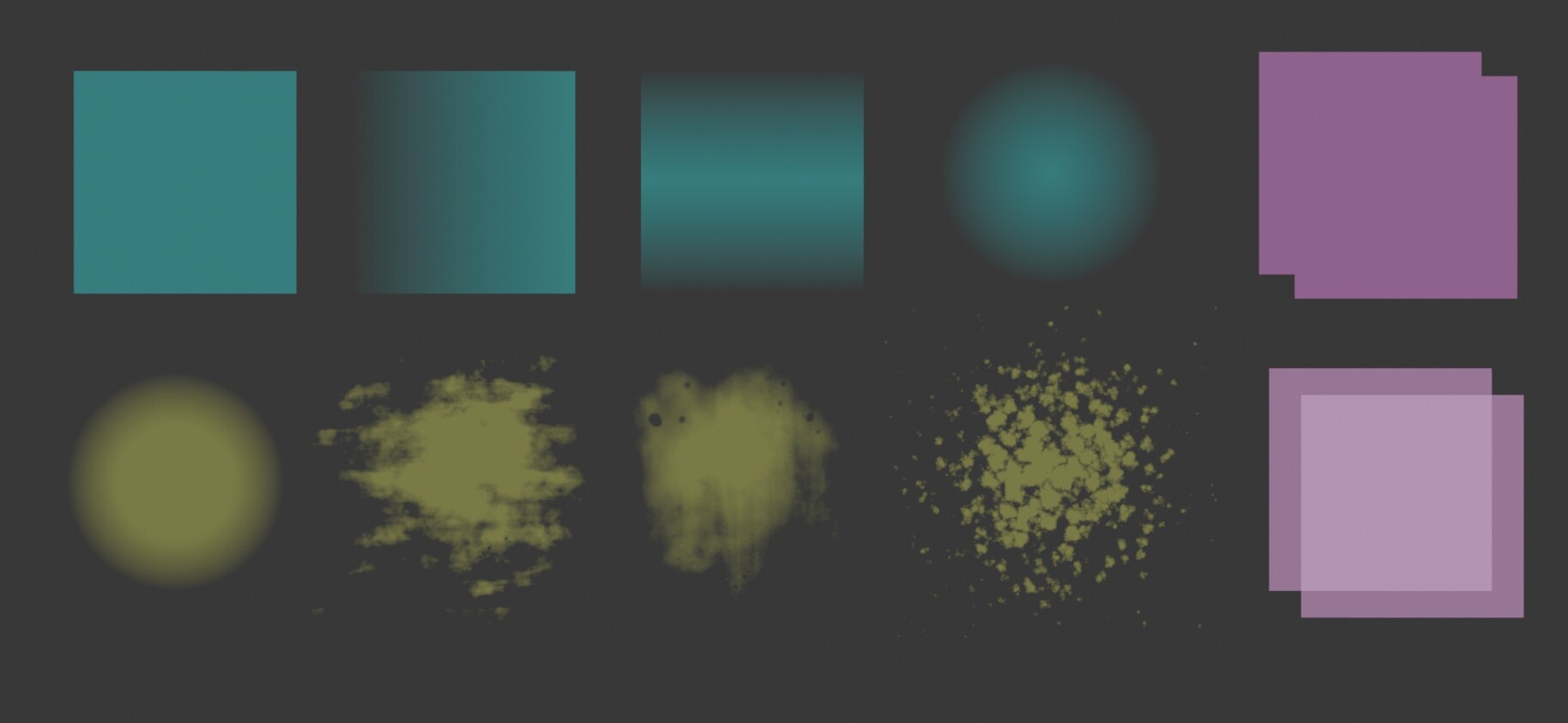

I also took advantage of eevee allowing to have additive blend mode for materials by doing so :

This was super useful for all those light effects / flares.

At some point I also made a side quest by looking into some fracture effects with geometry nodes. This was a bit overkill but those are always a learning opportunity.
The modifier takes a plane and a curve and it fractures and orient the elements according to it.
Here is a small demo :

“Grading” planes

And last but not least I made those colored planes that uses a geometry node modifier to drive their materials, this was super helpful to re-balance the image and to lighten or darken some parts… Also they can work in normal or additive mode…

Here is a comparison when I turn them all off and on :

Thanks for reading !
