Why is my UV Cylinder projection distorted at the seam?

Support Materials and Textures
1

DistortedBlack

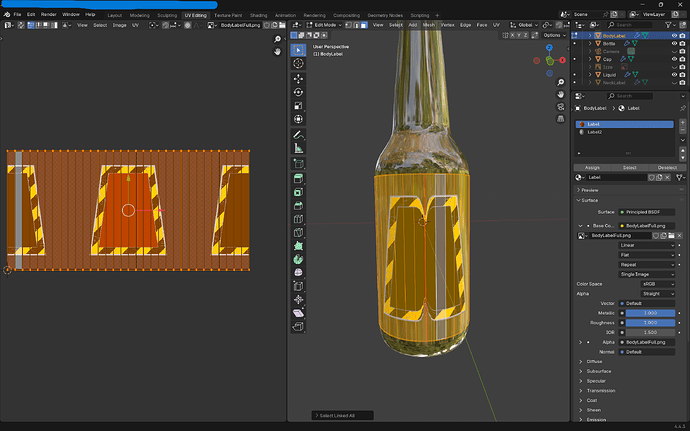

DistortedBlack2560×1600 1.39 MB

OKRed

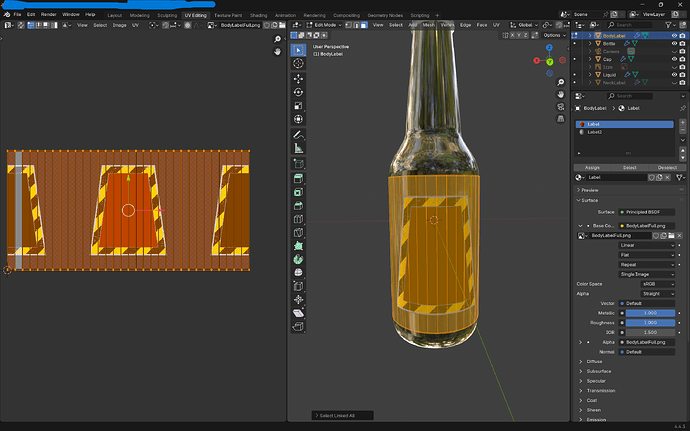

OKRed2560×1600 1.35 MB

I’m very new to UV mapping and blender in general, so I’m not quite sure the terminology to search here. What I did:

1. UV Cylinder projection: View on equator, preserve seams, scale to bounds.

2. Image texture.

The front label texture looks fine, but the back label where the two seams meet is very distorted and pinched inwards. I checked whether I have duplicate vertices or inverted normals, and I don’t. What’s causing this?

2

Hi,
are you using a subd modifier?
In that case try changing ‘UV Smooth’ options to ‘Keep Corners’:

s

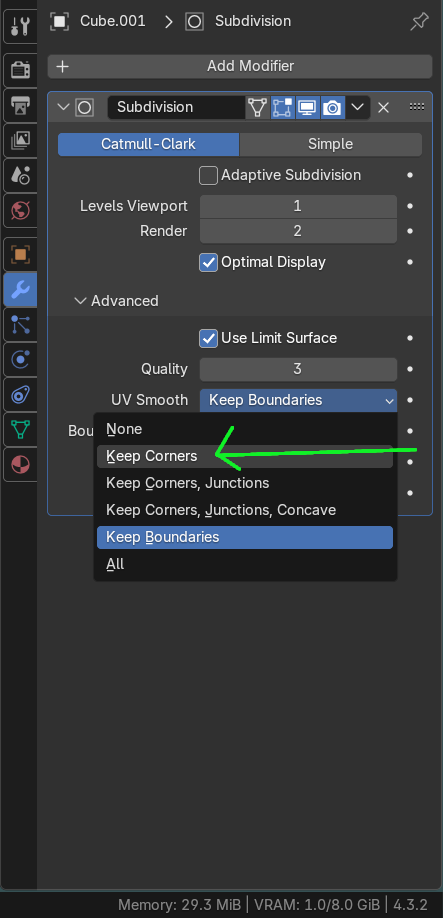

s443×918 51 KB

Here a really good video about UV unwrapping:

3

Thank you so much! This worked!
