Why not printable?

Support Basics & Interface
#1

Hi,

I would like to create a skimmer extension colar similar to this

My anet a8 fills it, as online stls fix sites. Why?
http://www.filedropper.com/extcolar

thanks
Drone

#2

I don’t use either, but here’s my guess

extcolar1
extcolar1.png1920×1004 258 KB

You have two objects (1) where their geometry intersect with each other, and one of them is non-manifold, marked red. It also has unapplied object scale (2) so what you’re looking at is not what the tools and modifiers see, and will export the wrong size if the scale is not applied on export. Ctrl+A -> scale to apply object scale.

extcolar2
extcolar2.png1920×1004 220 KB

The way it’s non-manifold is that there are open edges, which are edges with only one face connected to them, and double geometry with 0-area faces. The latter can be seen in face select mode, where face indicators are where there should be edges (1). Select all, W -> remove doubles.

Can’t have open edges, all edges has to have exactly two faces connected to them. In this case it means adding a surface between the open edges. Fastest way to do that is to go to edge select mode, ctrl+alt+shift+M to select non-manifold, then W -> bridge edge loops.

The form needs to be closed with surfaces and those surfaces need to point in (2), which is how one defines a solid.

But, you may not want to build it like you have, by adding intersections. Not all slicers can work with that.

One way you could build it is to

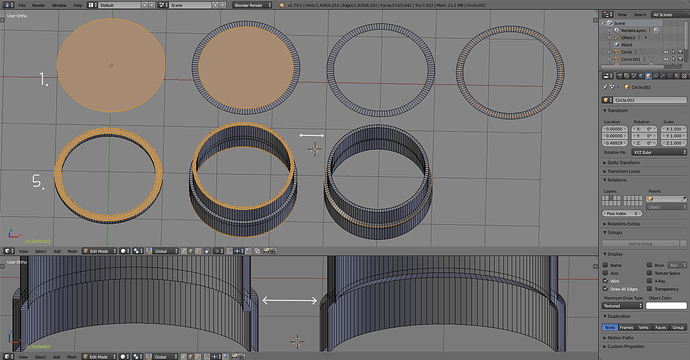

extcolar3
extcolar3.png1920×1004 176 KB

  1. Add a circle, 128 vertices, fill: n-gon
  2. Inset (i)
  3. Delete face
  4. Add a loop cut in the middle, ctrl+R
  5. Select everything and extrude up, E
  6. Select one closed face loop above, and another from below, and extrude along vertex normals, alt+E
  7. And optionally change the angle of the faces in the middle to make it less of a overhang by sliding the edge loops up and down, select and G twice

Or, model one side surface and have solidify make it a solid by defining the backing and connecting surfaces around

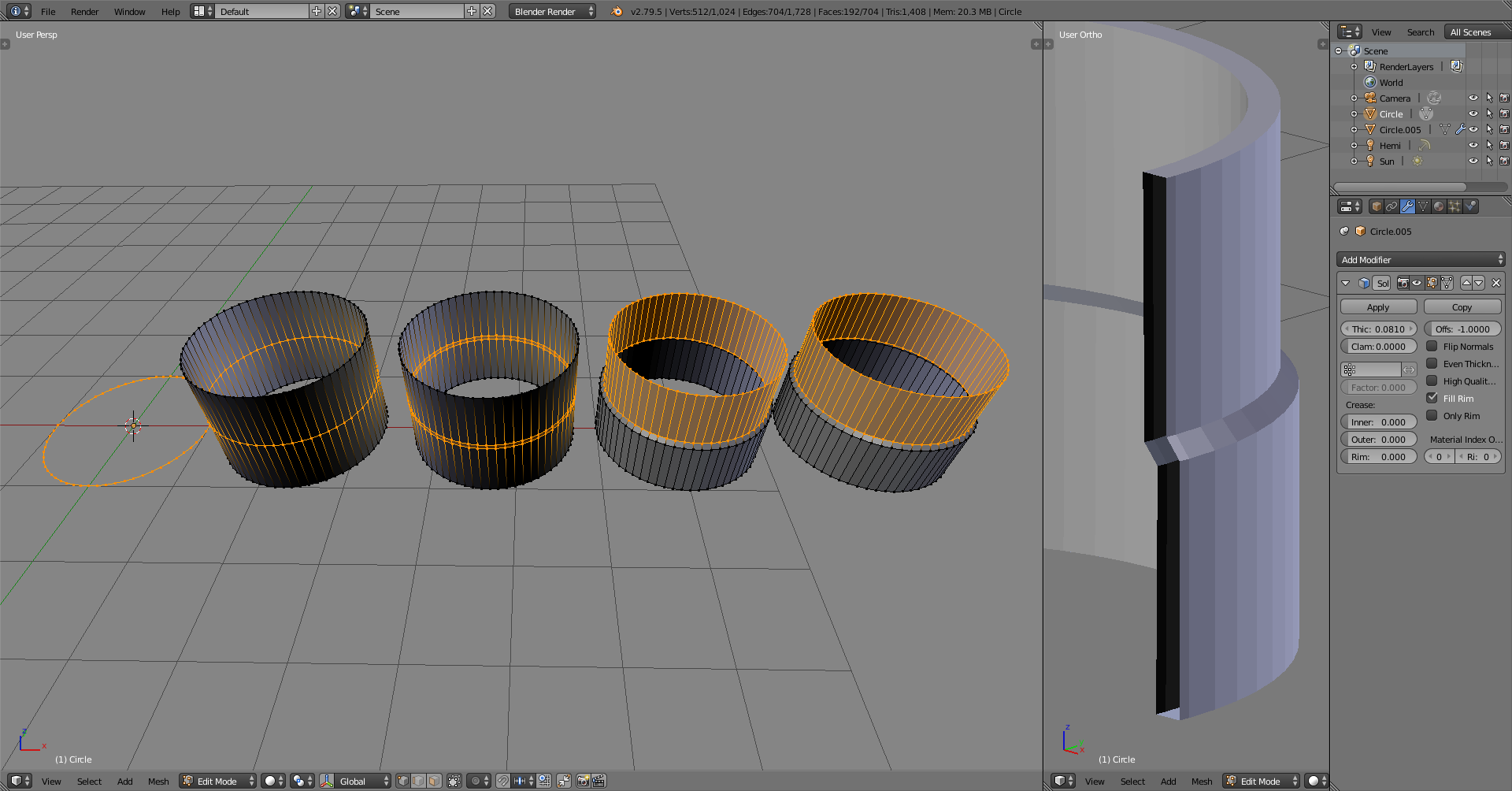

extcolar4
extcolar4.png1920×1004 173 KB

  1. Add a circle
  2. extrude up and add a loop cut in the middle
  3. bevel, ctrl+B
  4. select one half and shrink/fatten, alt+S, and enable even with alt or S
  5. Add solidify modifier
1 Like
#3

wow, thanks a lot!!!
