Archviz: Exterior Lighting and Shadows

Hi 3D_Kit,
Thanks for your reply.
Here is the blender file.
These are the shadow and AO settings used

My model appears to have the right scale

Yes, very interesting. İ am going to go home now. Maybe i can check your project on night

Cool :slightly_smiling_face:!

ive requested acces to your scene, i could help you make something like this

its a concept ive made in like 5 hours from scratch to animation finish. so its lacking in details.
Also what version of blender are you using?

hmm i need acces for drive. :upside_down_face:

Access granted. Sorry about that.

Access granted. Sorry about that.
Wow…all done in about five hours…that’ :hushed:s amazing!
I’m using Blender 2.82.
Thanks in advance for the help.

Ok this is your render:

This is my render:

And this Cycles:

List of problems

  • UV problems. I used Texture Cordinate - Object
  • Shader problems. Why wood metarial have 1.0 metalic ?" or "speculars is 0 rougness 1.0
  • Oh some models need (Merge By Distance) because you can’t use (Smooth Shade)
  • Glass Materials need (Screen Space Refraction) in “material options > settings”
  • Always use fresnel higher than 1.0
  • Sun have 1000M Max distance. This is bad you don’t see there. Your scene max distanca 100M you need use 200M for shadow resolutions problems.
  • False Cubemaps make false reflections.

Those that make it difficult to work:

  • Although it is the same material, each piece remains separate.
  • If you don’t make specific animation use Origin To Geometry.
  • You can hide (Relationship Lines) because you have too much parent.
  • You can compost after rendering, Use standard filmic look. You need real colors for compositing
  • Some objects use the, same material many times.
  • Some objects need, Tris to Quads.

Your Good:

  • You are using linked object. This is really important

ı fixed some but render already bad. The problem looks like textures, I’m not exactly sure, it forced me.


Hi 3D_Kit,
Thank you! Thank you! Thank you…! :slightly_smiling_face:

Your renders look great.

You have saved me hours of browsing around for lighting solutions.
I will be posting in the evening after making the recommended changes.
Hopefully I can achieve similar results.

İ can send you edited project file for look my options. But i am travel now. İ try send you in this day.

Ok. Send me your project file when you can.
Thanks again and “bon voyage” as you travel.

apart from what @3D_Kit said i made some modifications to the light and reflections.
attached file in the link

important changes in my own opinion is taht people don`t mix cycles and Eevee.

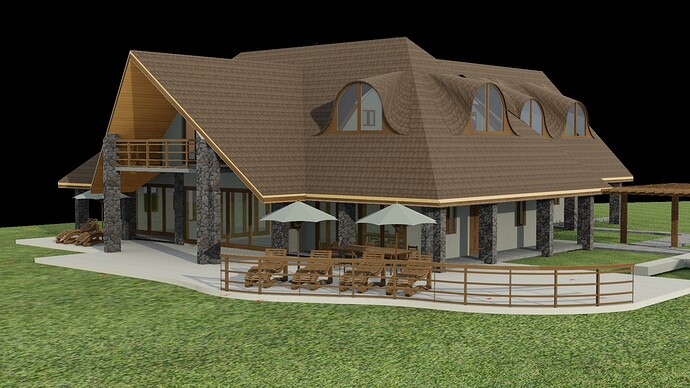

this image has AO increased so that it covers the inside glass (fake but it works)

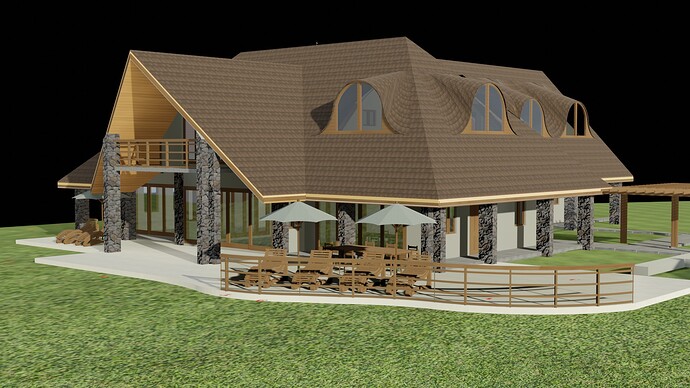

and this image is made combining the eevee render with no AO and the Clycles render with only the AO set to a preaty low sample count 128. Create 2 scenes linked so that they share the same data and the second scene has a simple setup just for the AO mixed in the compositor and you get this in 28 seconds render on my rather slow machine, also i should have decreased the mix factor to not make the image overall darker.

Reflections on glass should be like the ones discussed here Realistic Glass in Eevee but for archviz exteriors some modifications should be made

  • no half trace reflections
  • no edge fade reflection
  • add a reflection cubemap and set the cliping to not intersect the glass (adjust the cliping distance in the cubemap properties)
  • indirect lightning cube map size set to 1024 or higher
  • in my scene i dont use irradinace volumes because they dont work well yet, progress is being made monthly.

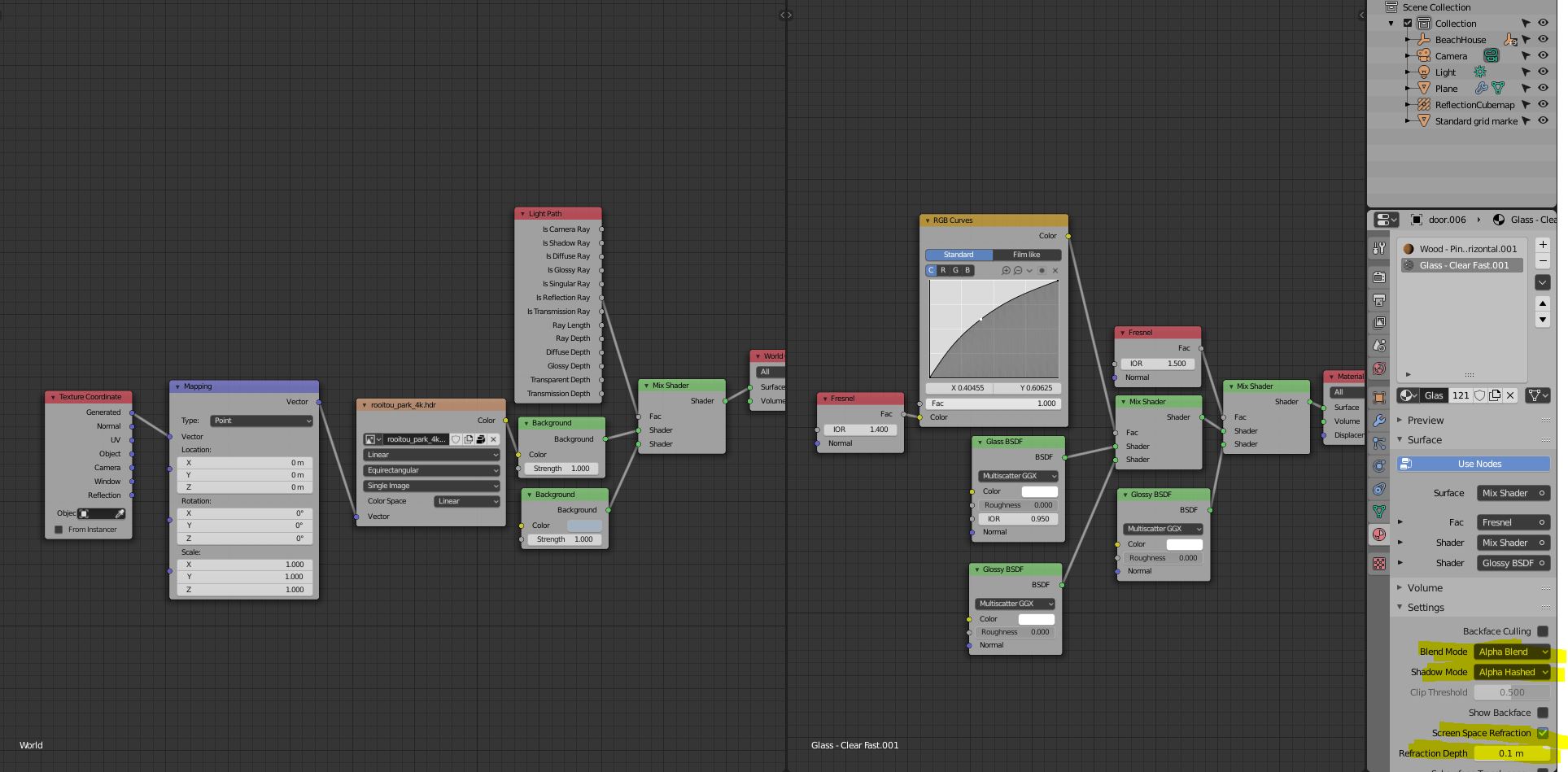

  • since you are using Revit and exporting FBX (just a wild guess because off everything has a base point parented), your glass has a double thickness to it so seting up the glass as in my screenshot and giving at most 0.1 reflection depth goes a long way. Also i mixed your HDRi with a background of a collor i picked from your hrdi`s sky in order to filter out the reflections (as you may have noticed eevee and hdri reflection look magnified and blurry in glass so i filtered them out.
1 Like

also playing around with the RGB color curve and the last fresnel node of the glass gives you more or less reflections on archviz exterior glass.
Since eevee is a real time rendering engine light and glass cannot be accurate so you will have to adjust values from your camera angle.
Think of eevee like a painter adding effects on top of what you see and only what you see, like layers on photoshot/gimp etc.

1 Like

Good, surfaces became apparent but maybe need more spp for noise
Me You

I’m thinking most big problem is Textures and model. Maybe need displacment for more detail

i havent done any work on the materials, i`ve only touched on the light and reflections side.
giving that you are working with imported geometry, displacemnt will be a pain to setup, not to mention that eevee doesnt suport material displacement. if you are serious in archviz and imported scenes from CAD softwares maybe you should invest some money in some addons - for reducing poly and triangulation and also it welds edges together making it easier to subbdivide the planes in blender in order to mesh displace it. this one i`ve purchased just for the improvemnt it does to textures giving paralax effect and higher quality control just from the texture it self no other maps required.

But if you want to make this as photorealistic as you can, then you should add envoirment like grass, trees, dirt and grudge maps on materials and grounds, and the most important fact if you are using materials with reflections like wood, metal, varnished materials, plastics you should ad this trick, good guy.

1 Like

Thanks @3D_Kit and @Pasten_Narcis_Dan for the great help, adjusted Blender files and lots of valuable info.
Following the very first notes @3D_Kit, I have adjusted the:
Eevee render settings:

Light settings:

and Glass Material:
Glass Material
and adjusted shader issues like 1.0 metalic on wood material.
So far, the render with only the above adjustments looks like this:
Next I should be making modifications to the light, reflections and AO Evee/Cycles mix in the compositor- following @Pasten_Narcis_Dan 's post/instructions.
Lastly address the main “culprit” i.e…materials!
As advised @Pasten_Narcis_Dan I have gone ahead and bought the bmesh-clean addon and super-texture add-on.
Regarding grass and trees…any nice inexpensive add-ons you can recommend…?
Thanks again.

you dont need add-ons for grass and trees, once you have a decent grass texture on the terain, just add a particle sistem for it and play arround with the settings, by default every particle strain will be the color of the pixel its being extruded from. when you have lots of particles count you wont need grass as object.
Note that this effect only works if you arent rendering a closeup.

Use this free addon for creating moddular trees, for starting into envoirment creation, you can build up a library in time of trees, and append them into other scenes

There are planty of youtube clips and tutorials on how to use this addon

1 Like

Thanks @ Pastean_Narcis_Dan your post regarding grass was very timely :smiley:. I was just trying to figure out the whole particle system process.

I made some modifications using the bmesh-clean addon and super-texture add-on.
The grass and dof is done following the quick grass on Eevee tutorial. The trees are made using the Botaniq Lite version addon
Hopefully, soon I will get to modify the light, reflections and AO Eevee/Cycles mix in the compositor :smiley:.

try lighting from side.
