Import CAD Model for Blender

A Blender addon that enables import of CAD files (STEP/IGES formats) through conversion to mesh formats using Mayo conversion toolkit.

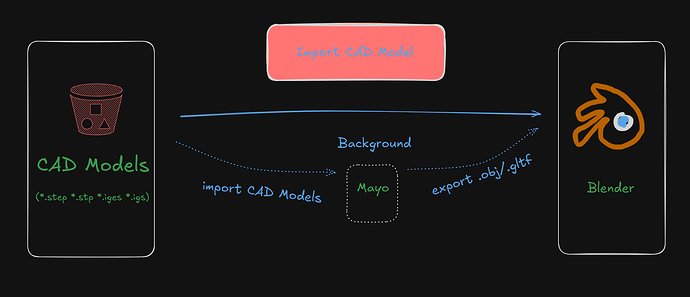

Schematic diagram
Schematic diagram1993×858 110 KB

Demo

Features

  • :rocket: CAD Format Support

    • Import .step, .stp, .iges, .igs files
    • Supports both drag-and-drop and traditional file import

  • :gear: Conversion Options

    • Choose between GLTF or OBJ
    • Adjustable mesh quality levels (Very Coarse → Very Precise)
    • Custom scaling factors (0.0001x to 100x)

  • :desktop_computer: Workflow Optimization

    • Real-time conversion progress monitoring
    • Preset system for frequent configurations
    • 3D viewport integration

System Requirements

:exclamation: Windows Only
This addon requires Windows

Usage

Basic Import

  1. File Import

    File > Import > STEP/IGES (.step/.stp/.iges/.igs)

  2. Drag-and-Drop

    • Drag files directly into 3D Viewport

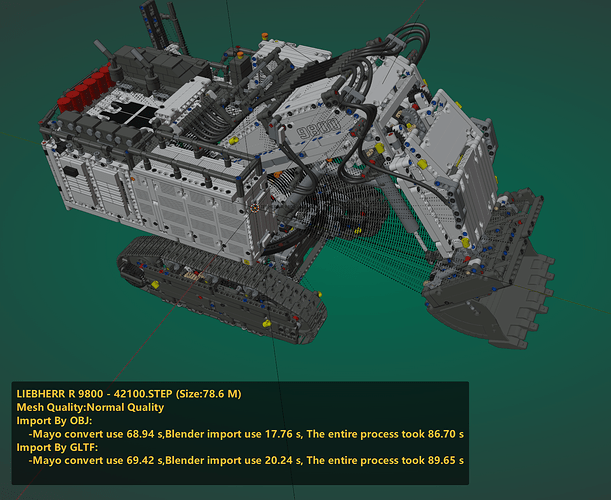

Import time test(Model)

TRY-IMPORT
TRY-IMPORT1555×1272 1.06 MB

Conversion Settings

Parameter Description
Output Format .gltf (hierarchy) / .obj (collections)
Mesh Quality Controls BRep conversion precision (trade-off between speed and accuracy)
Global Scale Adjust model scaling factor (0.0001-100)
Post-Process Auto-delete temp files, clean duplicate materials

Disclaimer
This addon is not affiliated with the Mayo project. CAD conversion quality depends on Mayo’s core functionality.
