Geonodes - Uniquely Generated Instance for each 'Instance on Points'

Support Modeling
1

First time posting,

Goal - Create objects with random numbers generated for each instance of an instance on points.

Line of Characters - I have some logic which creates a line of random characters (Either 0, 1, or blank) with a probability slider for the blank. This is working great.

I want to send the generated line to an Instance on Points of a circle, making a cylinder of these lines of random characters.

This is all work fine, BUT I would like each line of the circle instance to be unique. I’ve tried sending index into the random value generator’s IDs and seeds. I’ve attempted a repeater unsuccessfully. I’m a bit out of ideas.

How can I create a unique line instance generated for each instance of the circle?

2

This is my current setup (The index > RandomValue isn’t really doing anything):

image1998Ă—1258 248 KB

3

Here is the current results:

image1898Ă—1292 1.18 MB

So I’m hoping to find a way for each line of random 0,1,blanks to be unique when putting it in the mesh circles Instance on Points.

Thanks for any leads.

4

Hi

Yes, instances are like that.

Stay in the point domain for longer and realize the point instances:

image1075Ă—892 149 KB

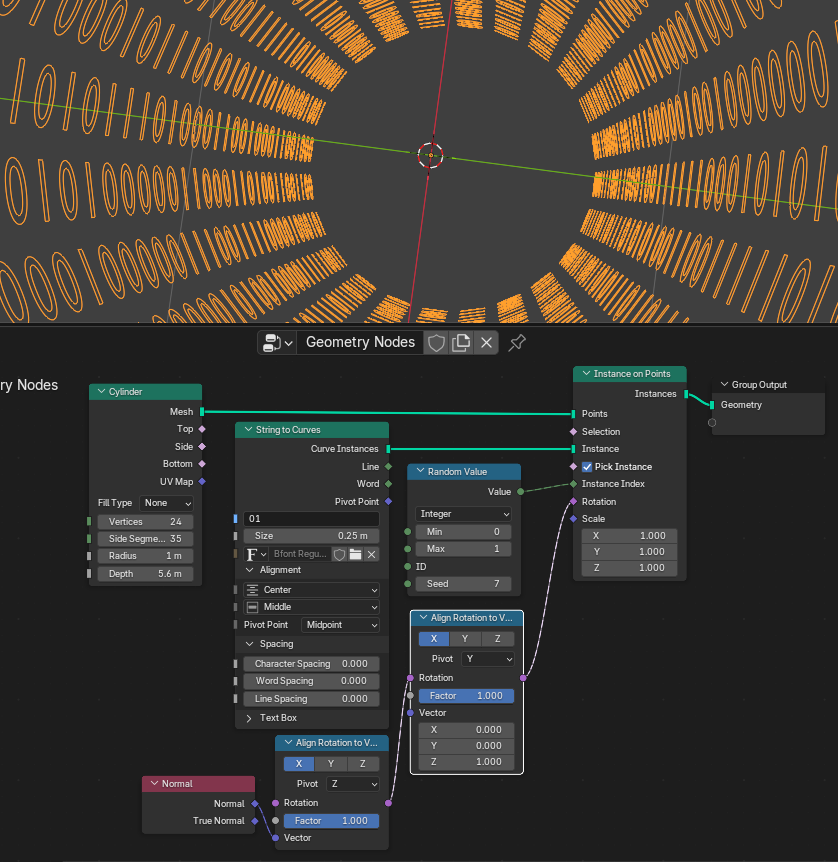

…or use a simpler construction, e.g. using a cylinder:

image838Ă—862 191 KB

Good luck.

5

This is great, thank you for the response. I was creating a random line and then instancing it. Using the circles is waaay better. Hat’s off to you, I appreciate it!

ZZ

6

Hey @zeroskilz

Sorry for the late response. This worked perfectly. I was making random digit lines THEN “tubing” them, instead of Random circles and then duplicating them.

Kudos and thank you for your time.

ZZ
