Problem with flip fluids on slightly angled surfaces

Technical Support Particles and Physics Simulations
1

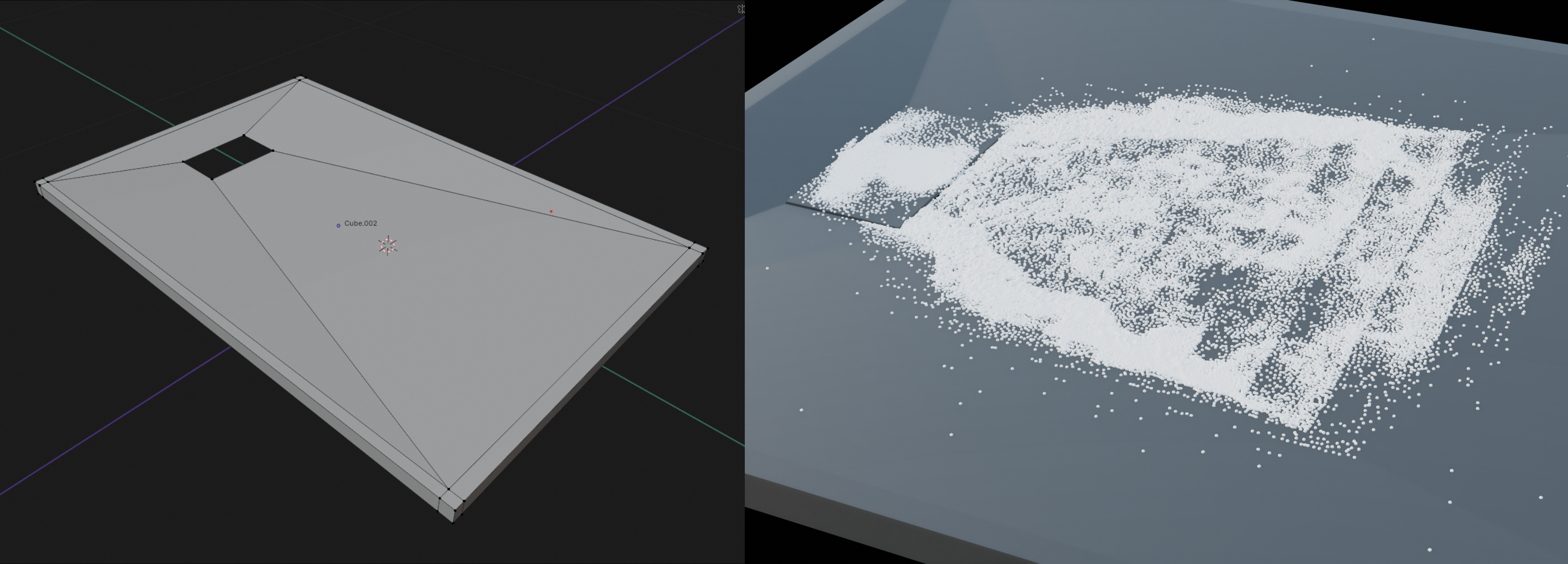

problem
problem3000×1080 2.94 MB

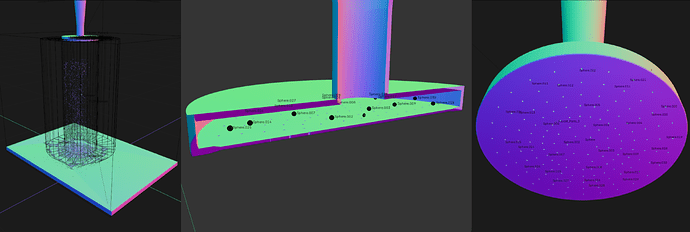

scene
scene3200×1080 827 KB

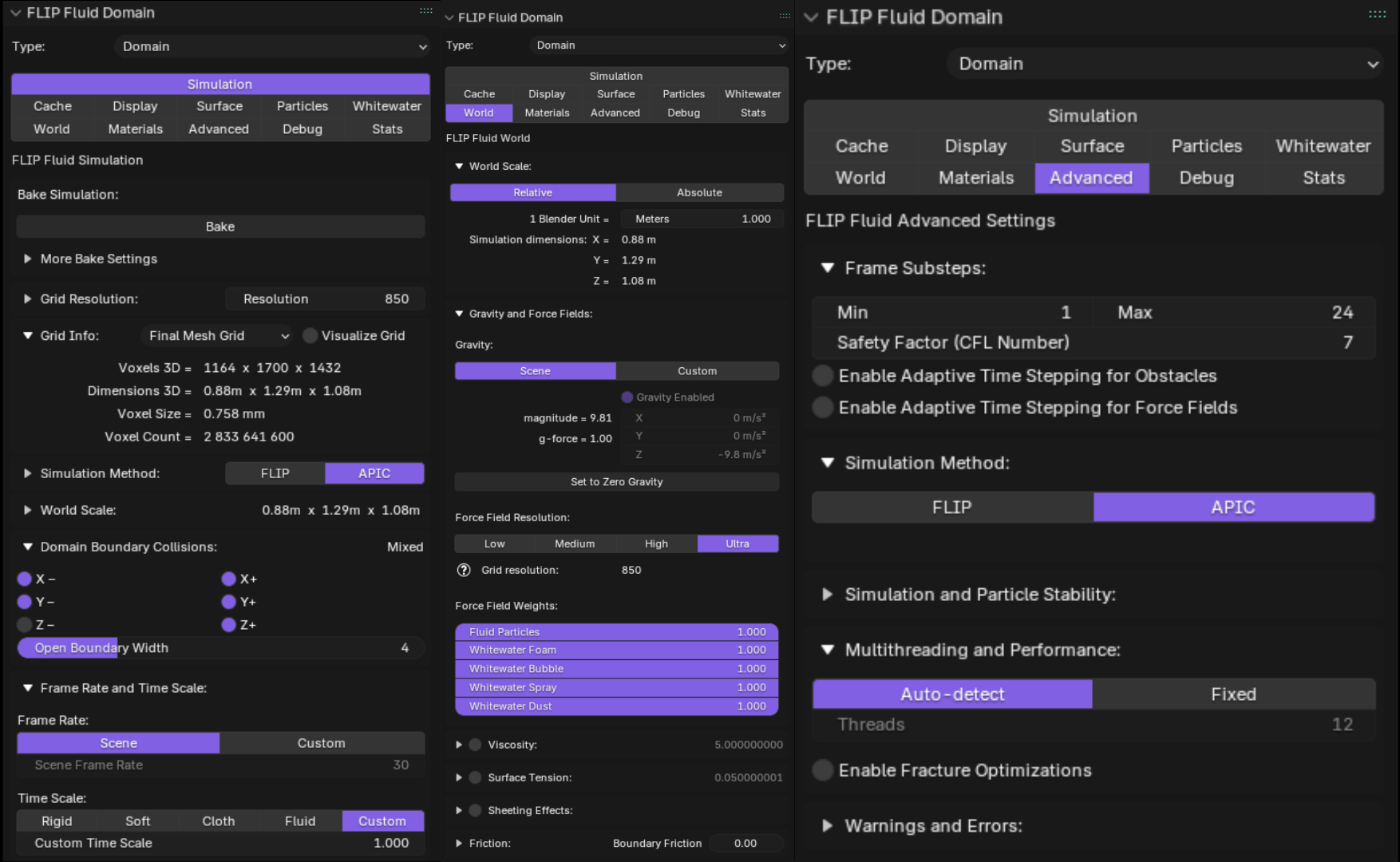

domain - settings
domain - settings1754×1080 317 KB

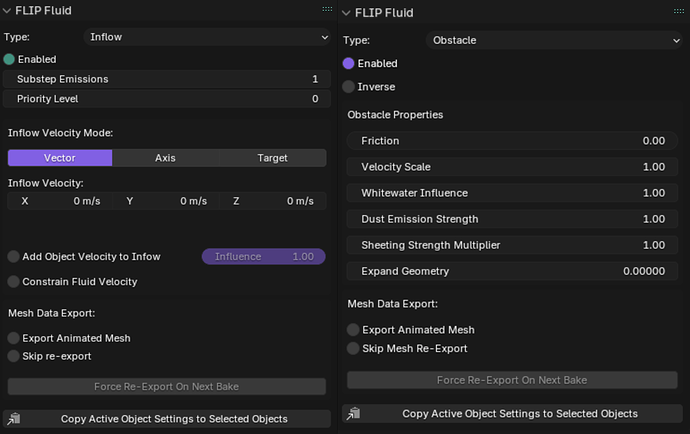

inflow and obstacle - settings
inflow and obstacle - settings1717×1080 237 KB

Hello everyone,

I’m currently facing an issue with FLIP Fluids while working on a client project. I need to simulate water hitting a shower tray and then flowing down the drain. The challenge is that the tray has a very slight incline, which causes the water in the simulation to appear as if it’s moving down a set of steps, rather than flowing smoothly.

Has anyone encountered a similar problem or found a workaround for this kind of situation? Any advice would be greatly appreciated.

Thanks in advance, and I look forward to your suggestions!

Best regards,
Diogo

Blender version: 4.2.3
Flip fluids addon version: v1.8.1 Humble bundle

2

I haven’t tried FLIP Fluids since it is a bit expensive but you could try increasing the size of the objects/scene or increasing the density of the geometry for the tray.

3

I’ve re-created this and i can say, its related to the resolution of the domain. The size of ‘steps’ are directly related to the size of the voxel for the simulation domain. But I suspect there must be a better way to fix this other than simply increasing the resolution.
