Procedural Destroyed Building

[mart0nnn (Marton)]

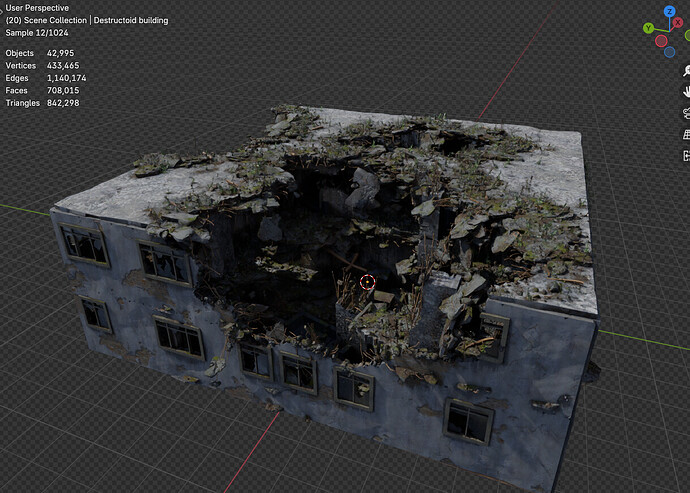

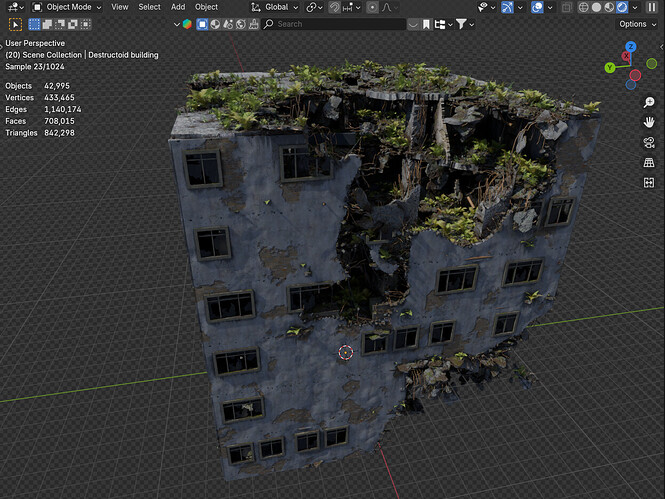

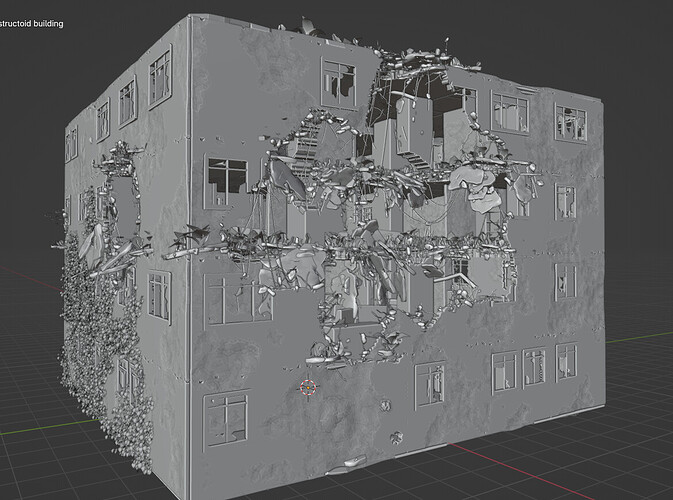

So… Recently I started working on a procedural destroyed building generator in geometry nodes. The end results looks something like this:

Everything is generated procedurally based off of a plane as the base mesh.

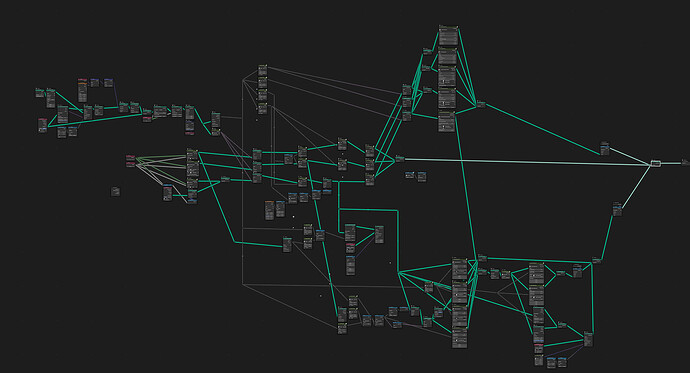

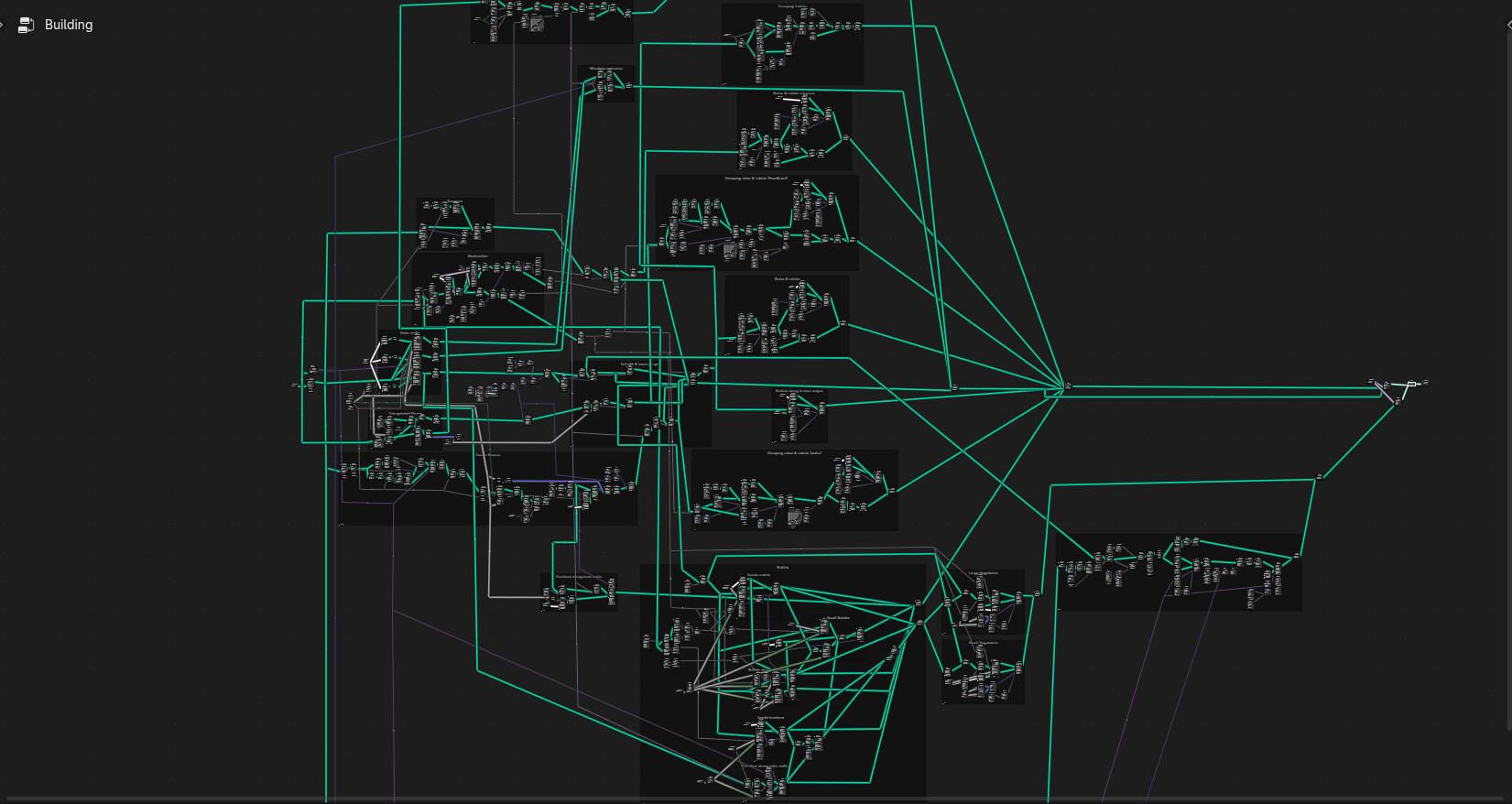

I think so far this is the most complex node system I have ever made:

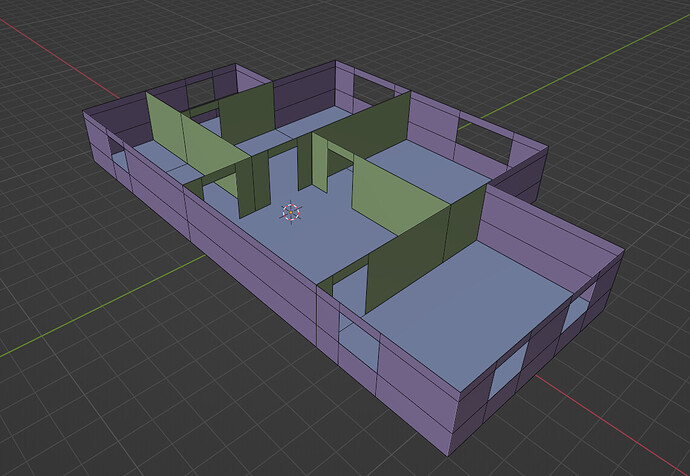

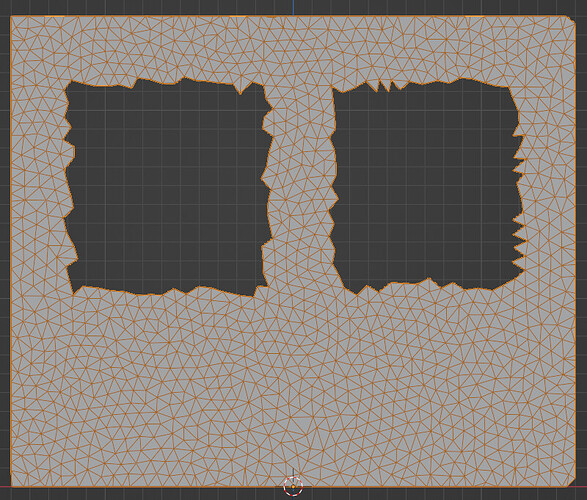

I started by building the logic behind the building walls, floors and inner rooms. I have base models for each that have a triangulated mesh such as this:

I then instance these in their correct positions to get the basemesh of the house:

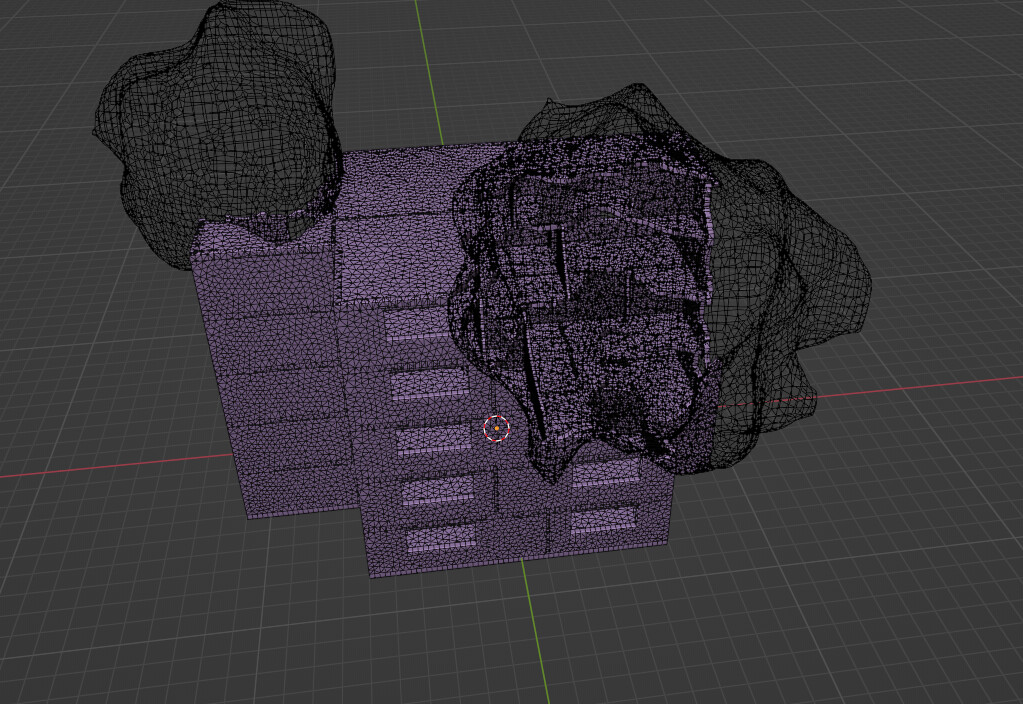

After that I scatter the destructive objects on the mesh. In this case these are ico spheres that are displaed with a noise texture. In order to stay away from booleans I now delete the faces of the house mesh that are inside of the icospheres, and then extrude the mesh to add thickness to the walls.

You can even use a custom object as the destructor.

After this it’s really just instancing objects onto this mesh such as the rubble, plants, and furniture.

I have multiple layers of rubble some of which is distributed from the exposed rebar that is hanging from the broken edges.

As for the texturing I have a global control system that adds moss and grunge to everything.

This has not been the first time I have tried making something like this in geometry nodes, however I was always limited by the booleans in blender. With this method I do not need to use booleans to get this look. The main inspiration behind this project is this video by Topchannel1on1: https://www.youtube.com/watch?v=45exbCZBMIc&ab_channel=TopChannel1on1

One downside to this method is the dense geometry that you get, but that might be something that can be changed in the future.

Once I clean up the file I might upload it to Blendermarket for a few bucks alongside a free simplified version on Gumroad.

If u have any questions feel free to ask!

[sozap]

That looks pretty neat ! Well done !

[BlenderTimer (Daniel Roberts)]

That GN setup screenshot makes me wanna cry… So many nodes!!!
Impressive work though!

[UnCommonGrafx]

Is this animated? The destruction, into the moss levels?
Impressive nonetheless.
Robert

[SterlingRoth]

I always appreciate a clever avoidance of mesh boolean operations, Nice work!

[mart0nnn (Marton)]

I guess you could animate the destruction, however your pc will not like that since it takes upwards of 6 seconds to resolve the node tree.

[mart0nnn (Marton)]

I just kept adding to the node tree… I dont know how it got to this point…

[BlenderTimer (Daniel Roberts)]

LOL That always seems to happen to me too, just not quite to that point.

[JWC (The Blender Boy)]

that is very impressive!!

[mart0nnn (Marton)]

A simplified version is now available on Gumroad for free: https://mart0nnn.gumroad.com/l/destroyedbuilding

[mart0nnn (Marton)]

So… I have re visited this project mainly to rebuild it from the grould up to optimize it, and because there are a few things I want to try.

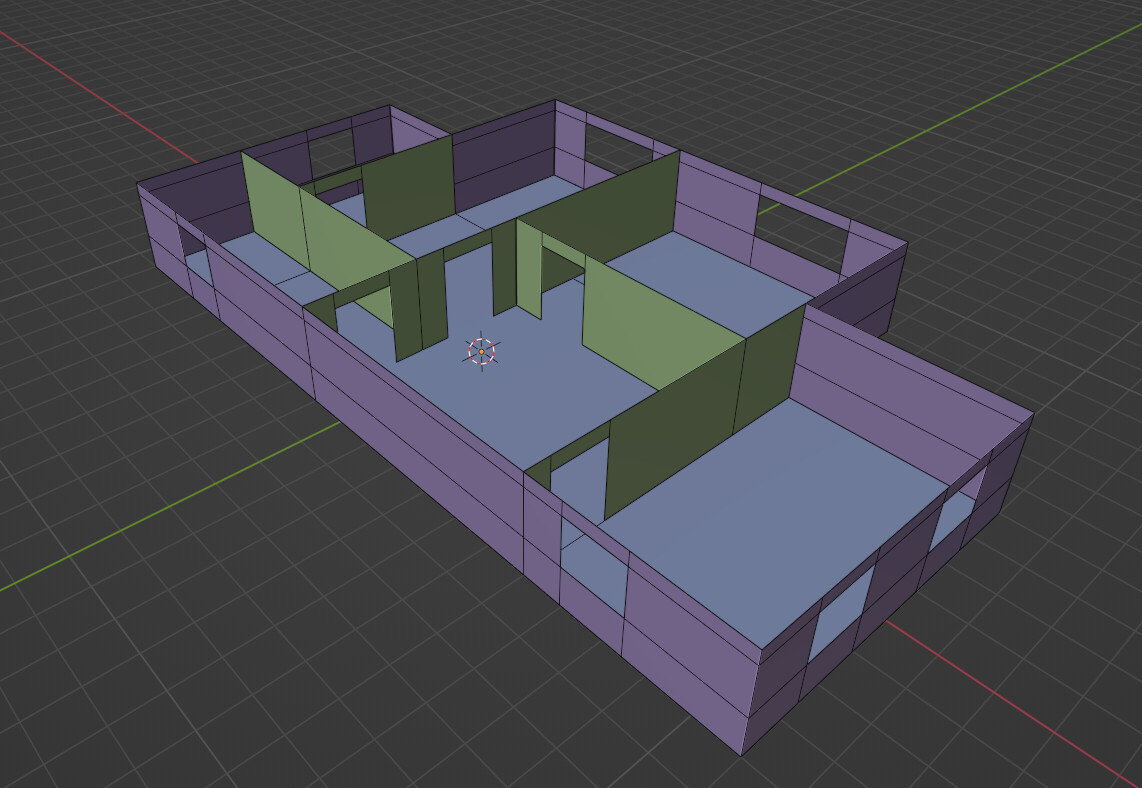

First of all, I want to be able to define the shape of the building, so instead of only modeling individual wall elements I just make the whole floorplan out of planes.

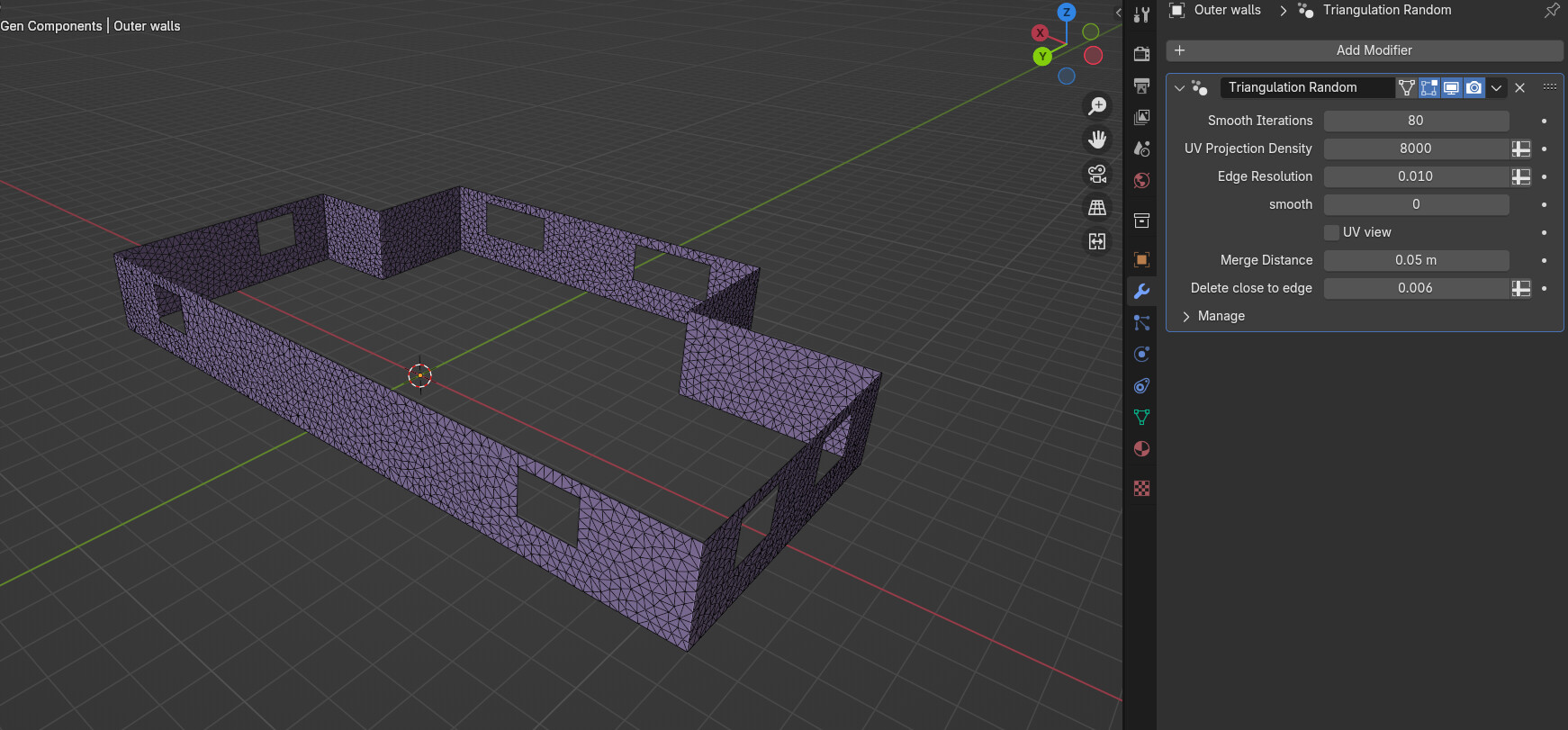

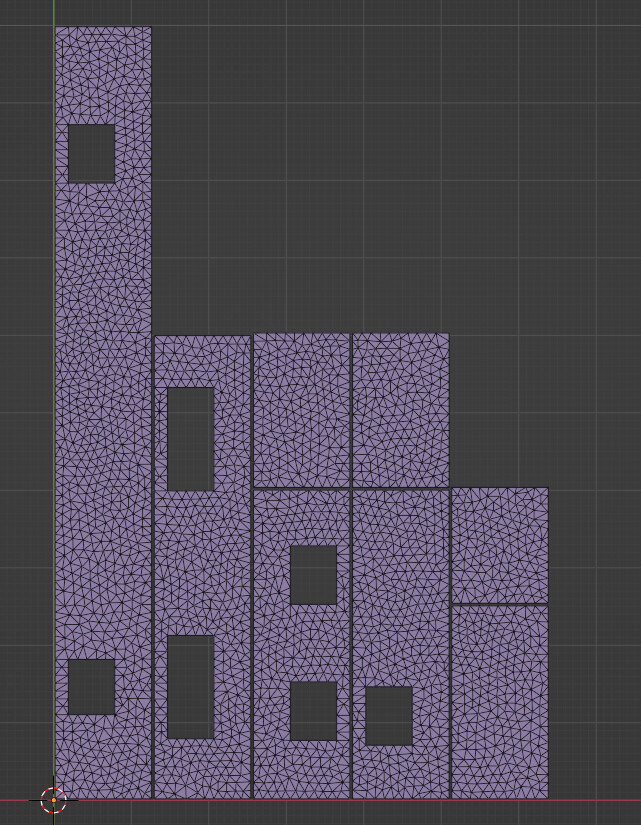

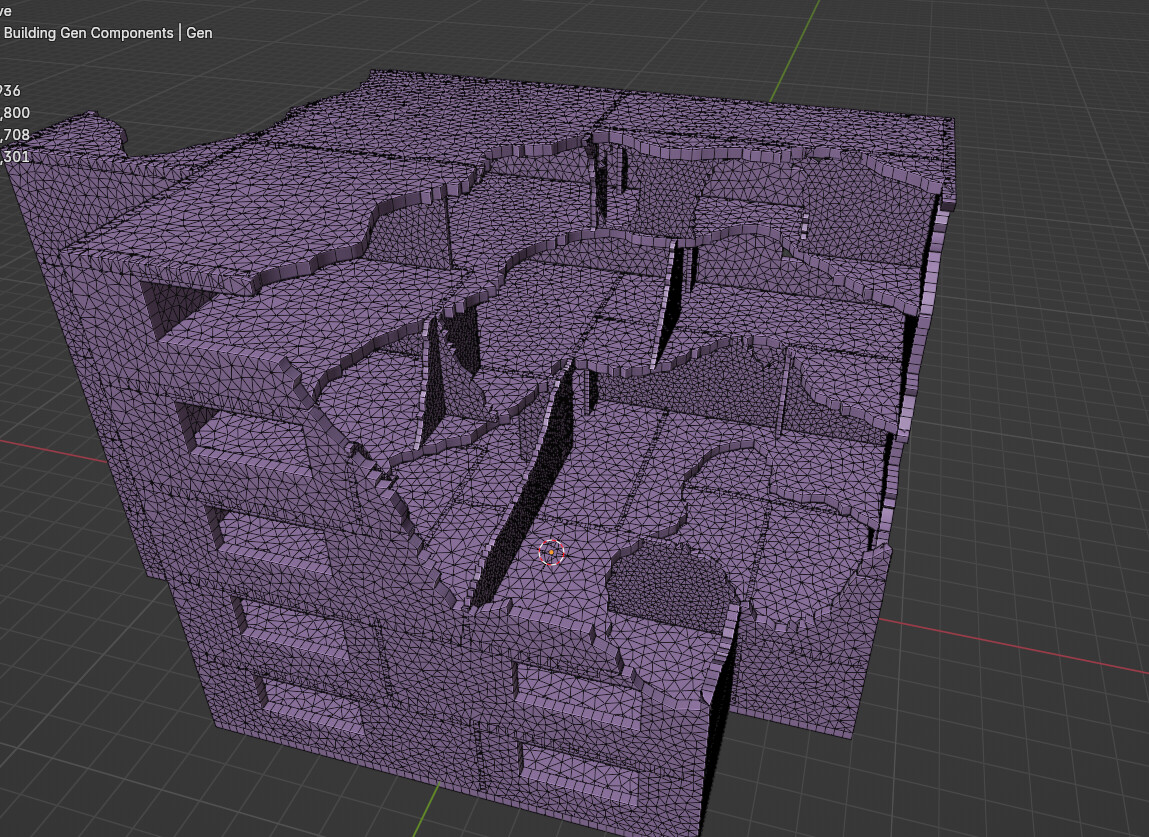

I also remade the triangulation process, so now the objects are unwrapped into UV space automatically then triangulated, and then moved back to their corresponding positions.

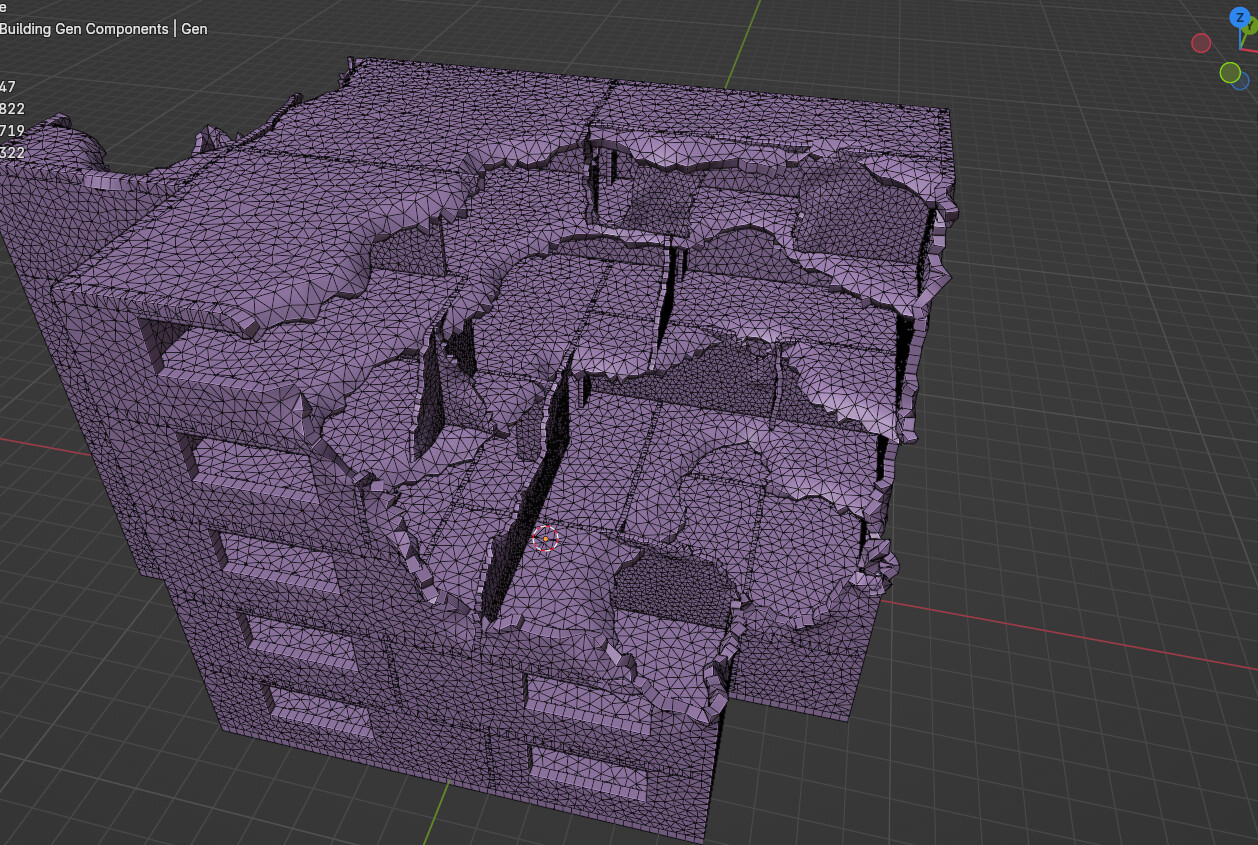

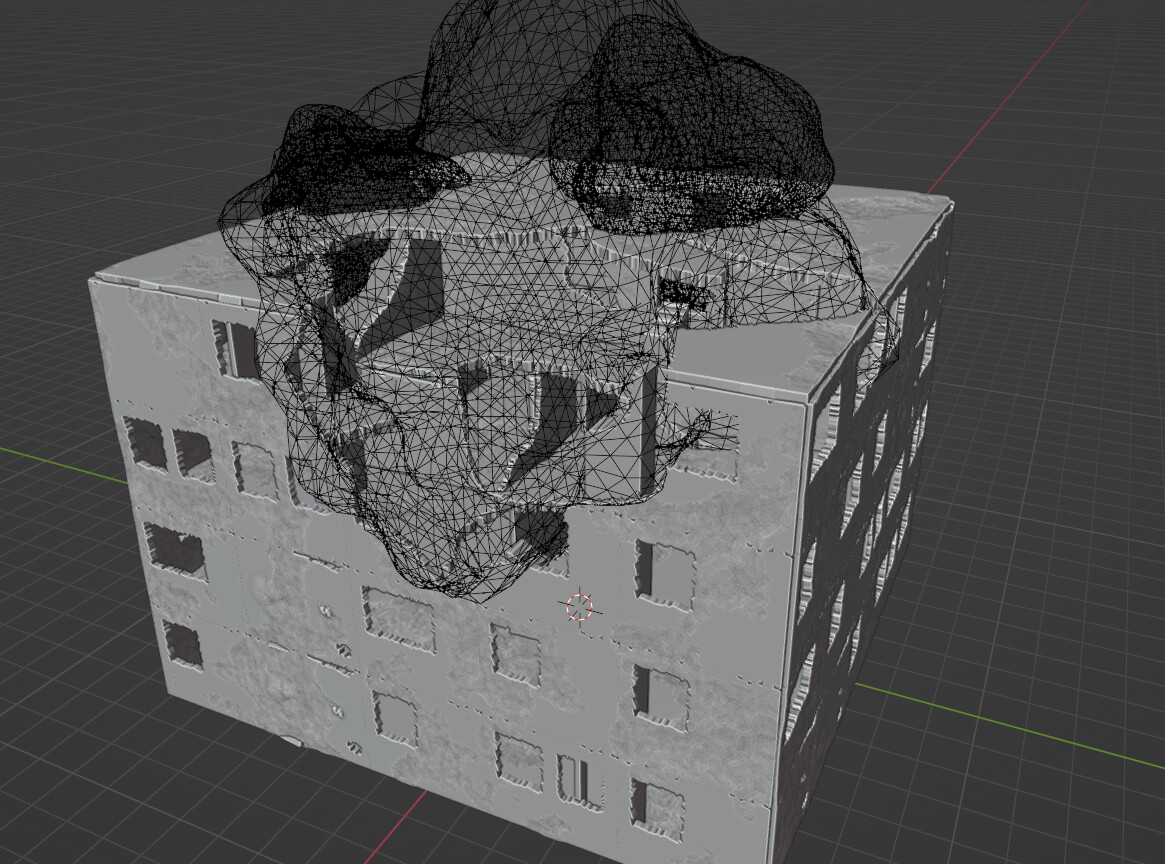

Then I take those parts and array them into the shape of a house. After the mesh has been arrayed, I then delete the faces that fall inside the mesh of a custom destroying object which in this case is a displaced icosphere.

Now one of the new thing I wanted to add is to make the floor droop downwards where it is close to the destruction.

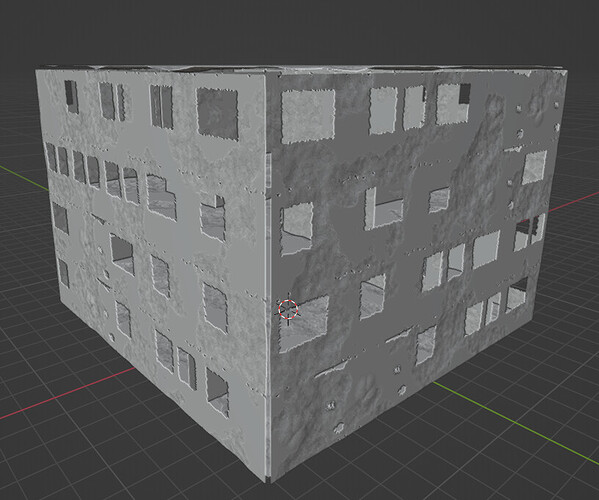

And for an extra measure I also displaced the walls as well with the same mask.

I then add some rebar and rubble to the edges of walls and floors. I also make a variant where larger amounts of rebar are drooping downwards with chunks of concrete instanced on them to give the effect of the floor caving in.

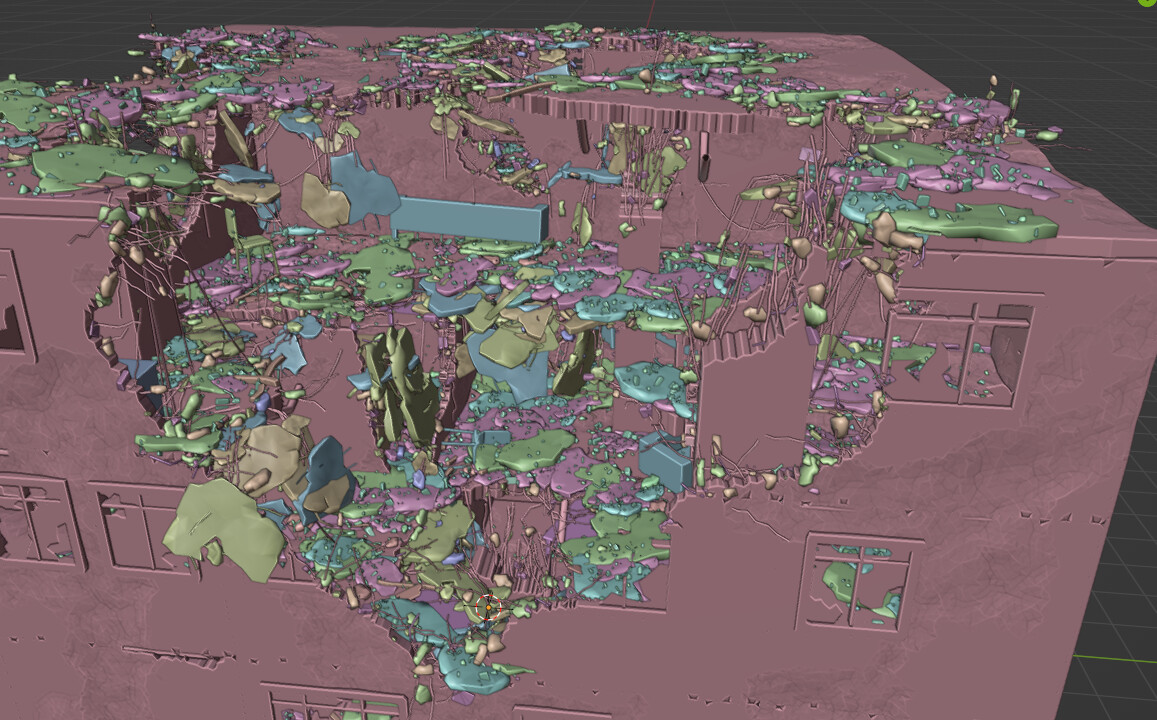

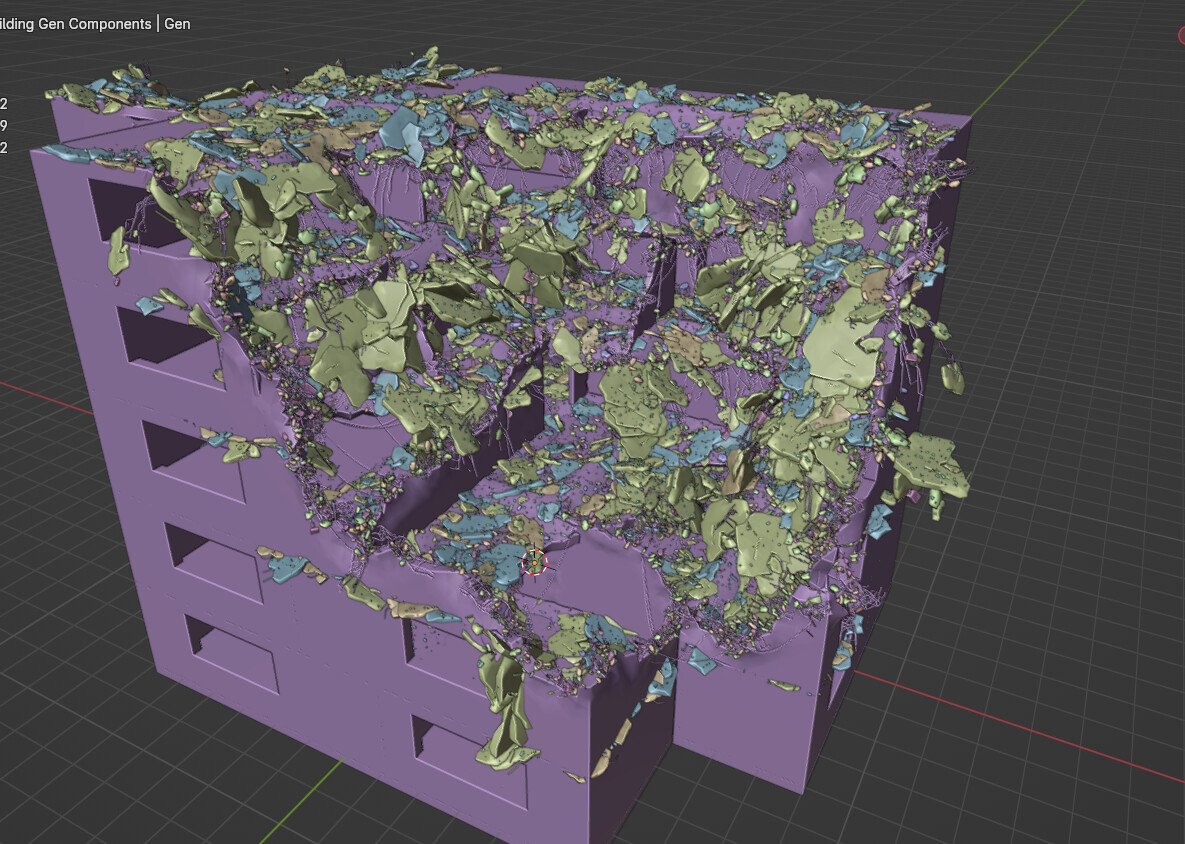

And then I spawned rubble on the floor close to the destruction to add more chaos.

I still need to add the furniture on the inside and windows, but this is a big improvement over the last setup and the node tree is a bit more organized.

I also want to create some roof elements so that it really looks like a building instead of just a weird cube.

[mart0nnn (Marton)]

Made a few images for this project breakdown on my artstation. (I cant only post every 2 years in my portfolio and expect people to take me seriously when I’m looking for projects to work on. )

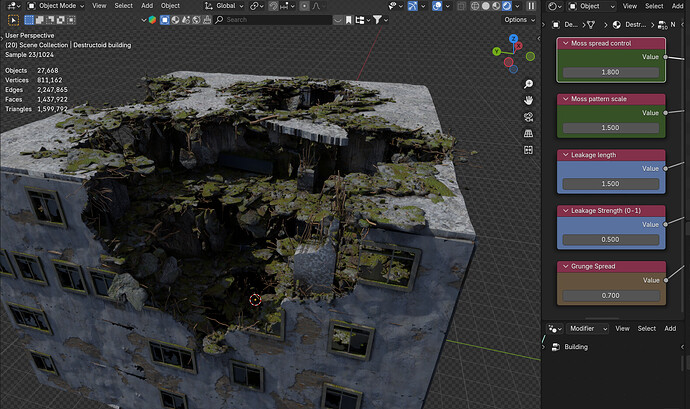

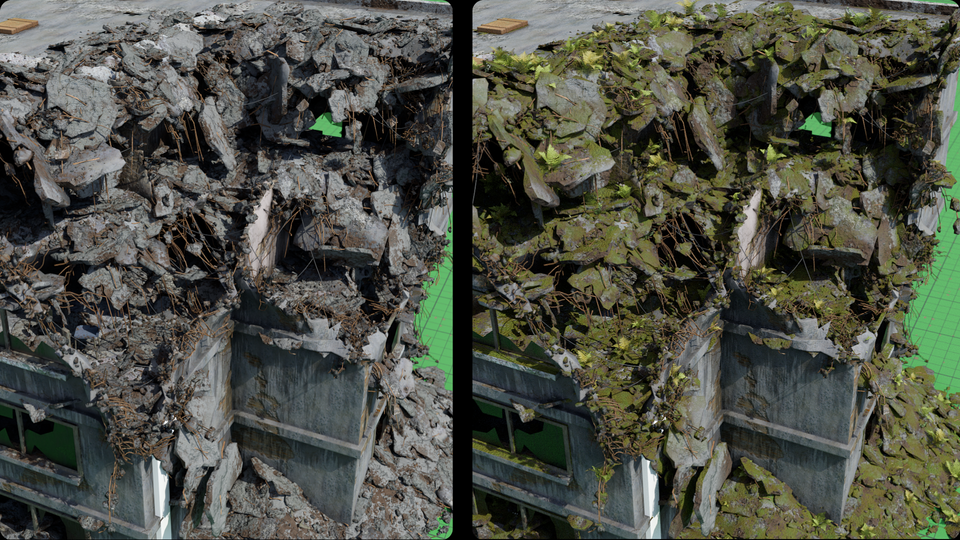

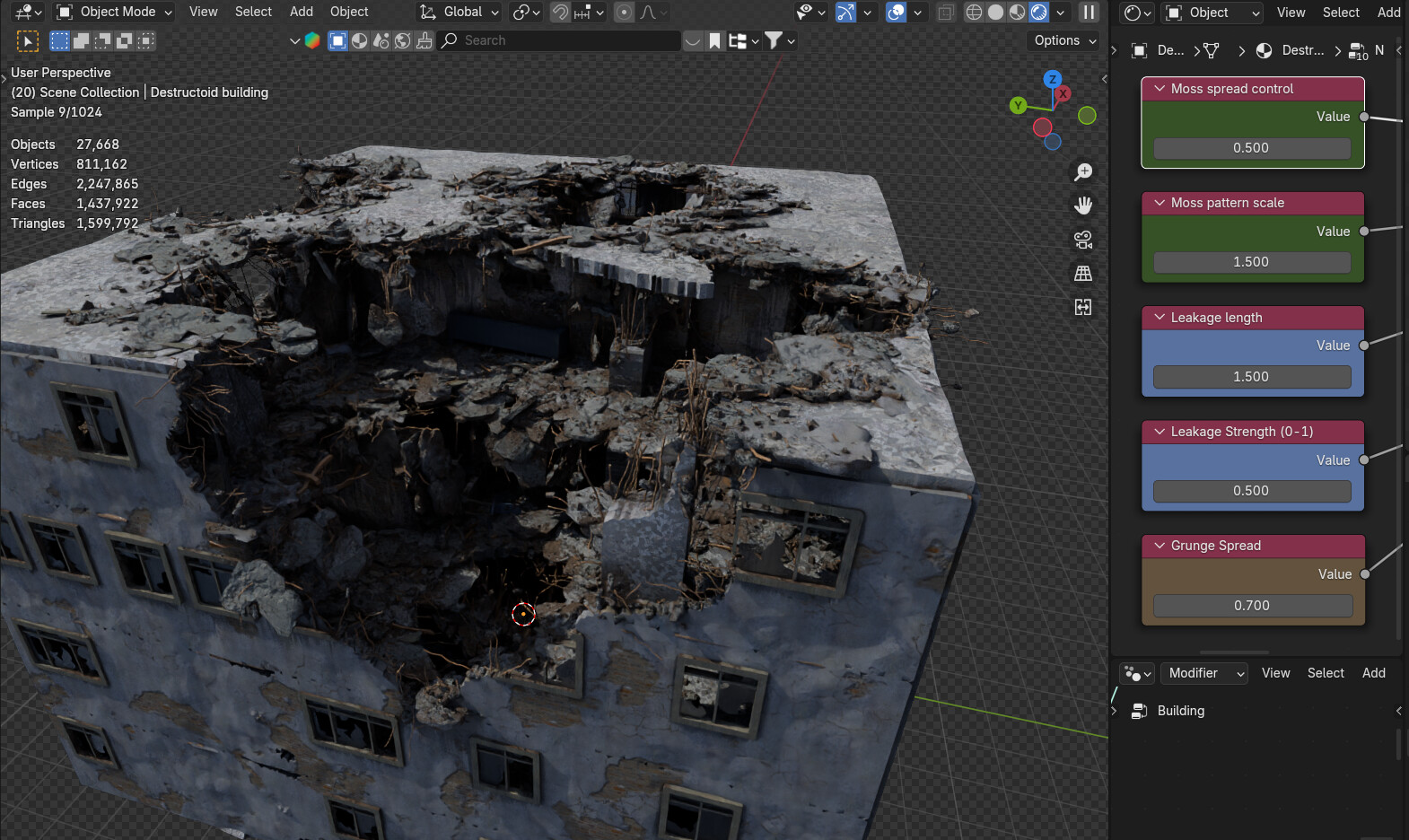

This is the effect of the global material controls for moss and such.

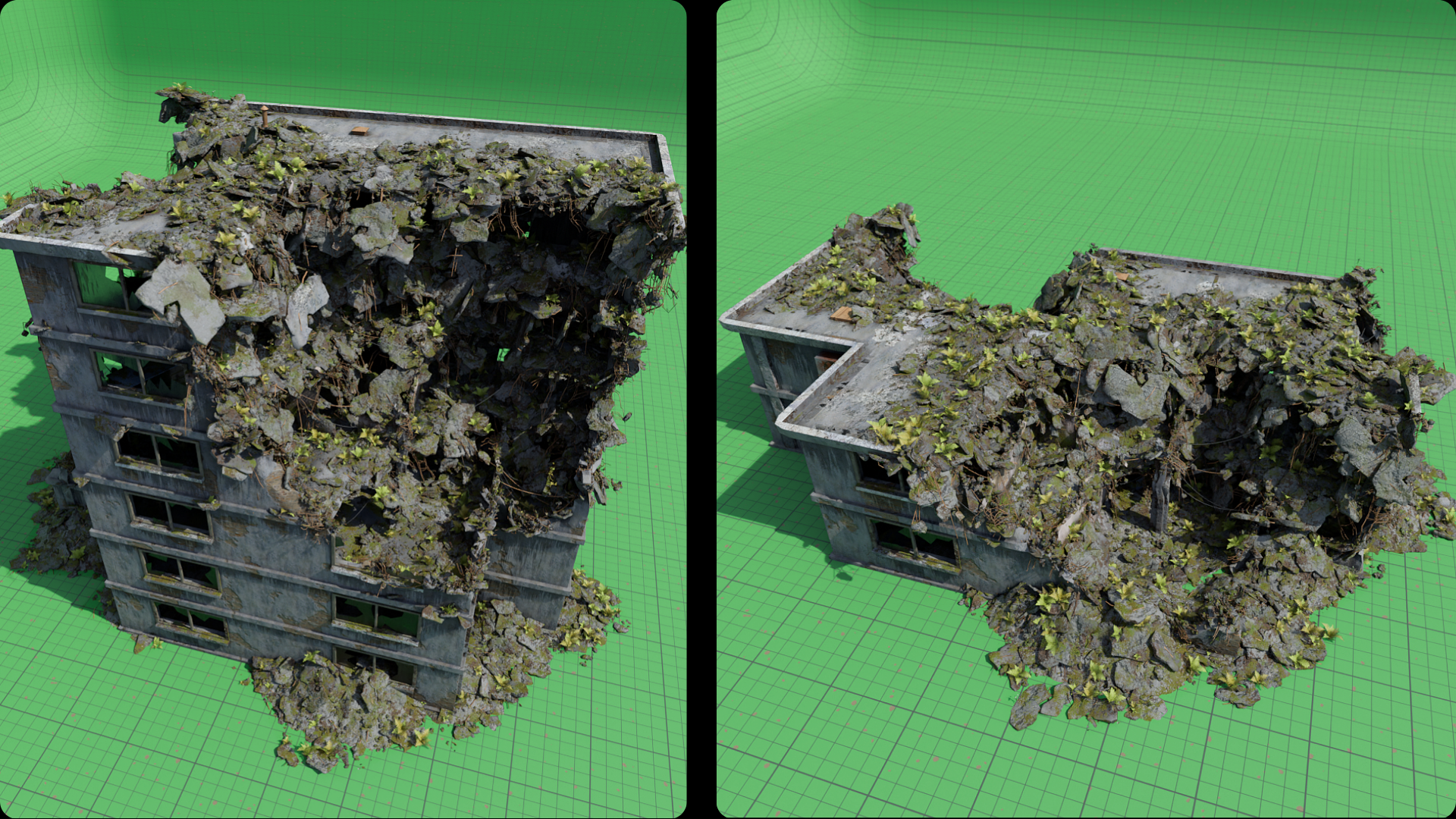

2 examples:

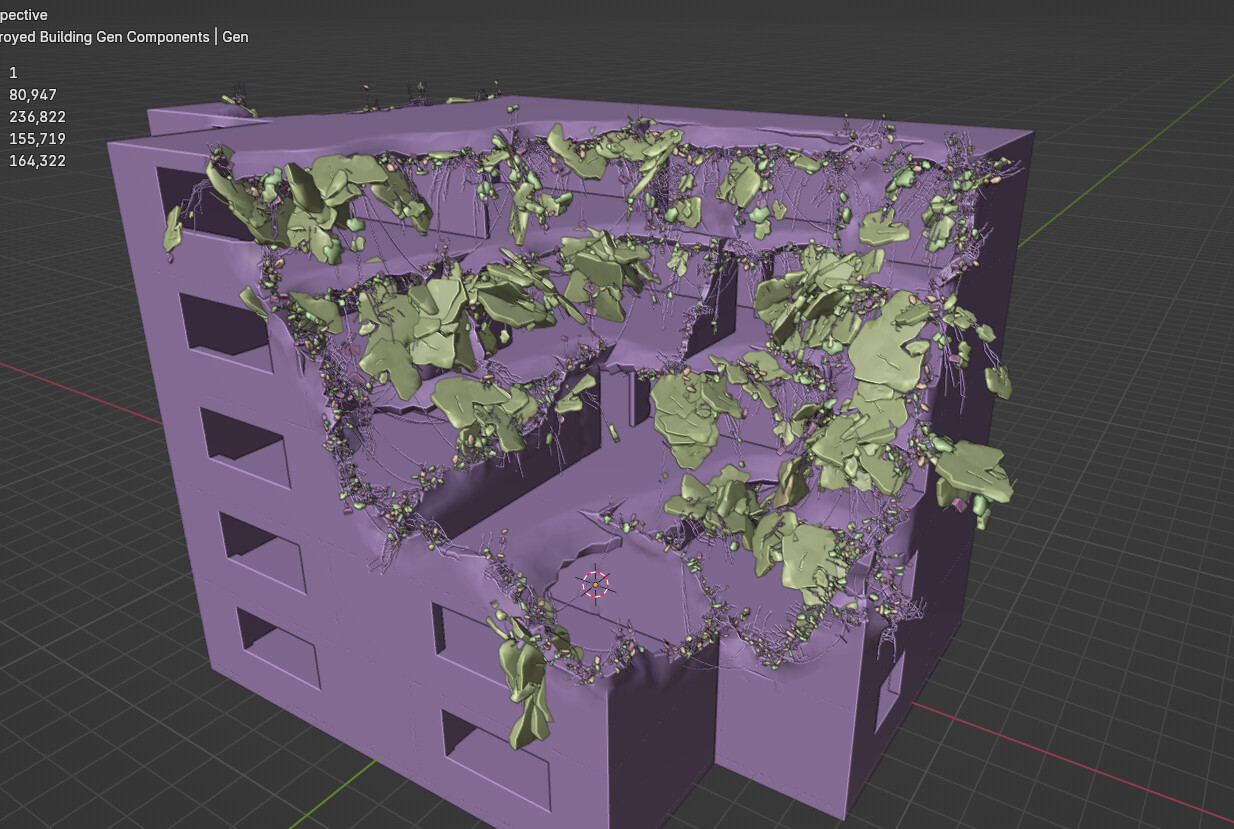

I also got around to scattering some furniture inside. The next feature that I want to implement is some ivy. I allready had a go at this, but the end result was not exactly to my liking, so I’ll probably keep trying ideas until I get something that looks good. If anyone has any good ideas on the ivy, do let me know.
Overall, I think the results look pretty nice and interesting, and once cleaned up and everything I might put it up on superhive for a few bucks.

Aaand the self plug: https://www.artstation.com/artwork/AZWVKW
