Staircase Generator on Geometry Nodes

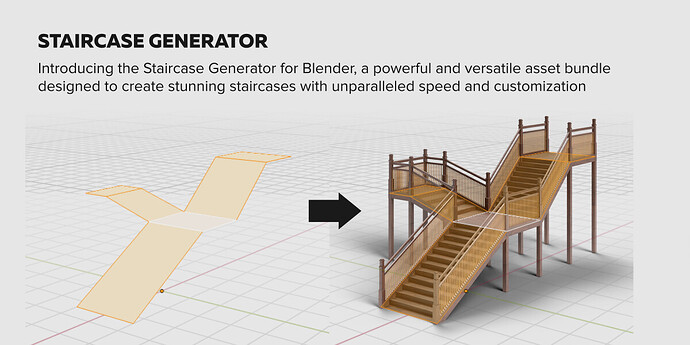

I would like to introduce my last project - Staircase Generator on Geometry Nodes. This node setup converts any mesh to staircase, putting steps on slopes based on specified step height or width.













You can get Staircase Generator at BlenderMarket:
https://blendermarket.com/products/staircase-generator

24 Likes

Wow! That’s a very impressive work! I work in Arch Viz, this could speed up workflows by lightyears…

1 Like

Very good job man! Bravo!! :clap: Now i’m sure to avoid the making of my own tutorial about it, yours is worth a lot!

1 Like

I featured you on BlenderNation, have a great weekend!

1 Like

I made a small video tutorial about how to use Staircase generator:

While making it I have found some bugs related to Staircase generator, so grab the new version, if you have already bought it. And also I have found a bug related to Blender.

1 Like

I made an update to the Bundle!

00:17 Hide Newels & Create Curved Rails: Vertex groups now can be used to selectively remove newel posts and create curved handrails. Spiral component now outputs a vertex group, allowing you to easily place newels at specific step intervals.

02:00 Updated Support Post: Control of an updated three-part support post (Walls, Vertical Frames, Horizontal Frames). You can now show/hide parts with vertex groups, use the “Hide Internal Parts” and “Trim to Staircase”.

3 Likes

Nice work.
