Why isn't it working? Trigonometric equations with Blender nodes

[Rimini_312]

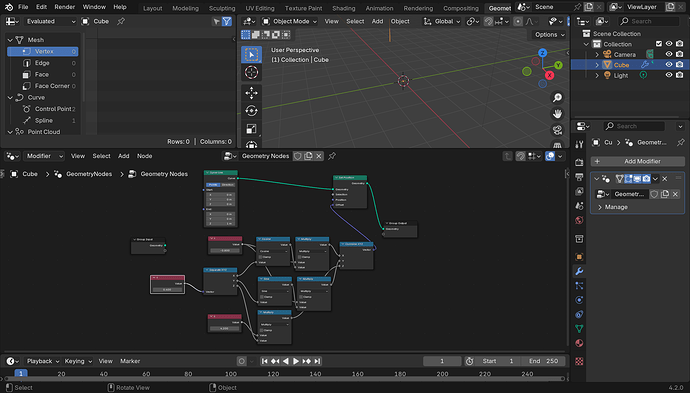

Hi, I’m trying to understand how to create equations in Geometry Nodes. This is supposed to generate a sine wave, but there’s no result. What is wrong? Thanks.

[Okidoki]

Welcome …

well… t is no variable here; it does not change… and you are positioning the curve line to one (and only one position… you must use some “cahnging” input and maybe re-search a bit about GN fields…

You may have look at:

Geometry Nodes Sine Curve , points

Here’s one way to do it: [image] You don’t need to use the transfer attribute node, since you are only applying the operation to a single geometry, and you don’t need to transfer any data to another one. Hope that helps!

( or use further this awesome forum feature at the top right Search: … )

[roobol]

What Okidoki said, you can use a time node to drive your curves. I have some examples at Roobol - sketchbook - #50 by roobol and Lissajous - #2 by roobol

[zeauro]

You were almost, there.

3 mistakes.

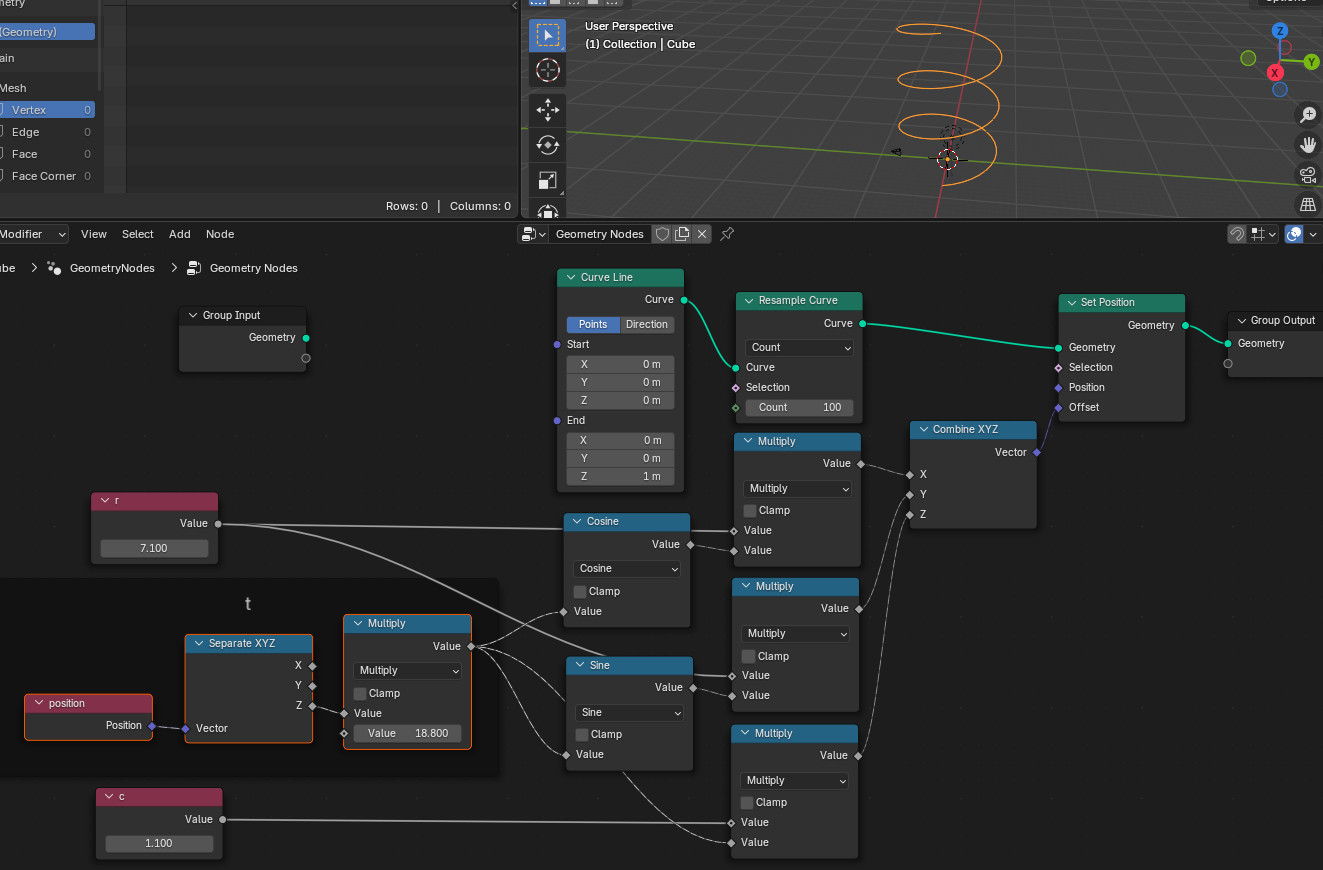

• First one, curve is made of only 2 points. It does not matter how you offset those two points : result can only be a line. A Resample Curve node is necessary to increase amount of curve points to move.

• Second and main one, t is a variable in equations. That means it has to correspond to a field. Here, I choose to make it corresponds to position of points according Z axis. I added a multiplier to control it better according to resolution of curve set by Resample node.

• Third one, t is same variable for 3 equations. So, that is the same output of Separate XYZ node that has to be plugged everywhere.
  3 equations. 3 dimensions. Result is a spiral.
  To have a wave, you only need 2 dimensions x1(t),z1(t) or y1(t),z1(t). Z is t multiplied. X is cosine wave relative to t or z. Y is sine wave relatively to t or z.
  So, you have to unplug X or Y equation plugged into Combine XYZ node.
